Dongfeng Dolika Water Sprinkler Truck (8-9 cubic meters)
Classification：
Keyword：
Overview Introduction
Chassis Configuration:Dongfeng factory chassis with higher configuration Engine: Yunnei 150 horsepower or Chaochai 170 horsepower Wheelbase: 3800mm Tires: 245 vacuum tires Transmission: Wanliyang 6-speed gearbox Front Axle: 3-ton Rear Axle: 5.5-ton Factory-installed air conditioning Electric windows Central locking system.
Tel：+86-123-4567-8998
Product Details Introduction

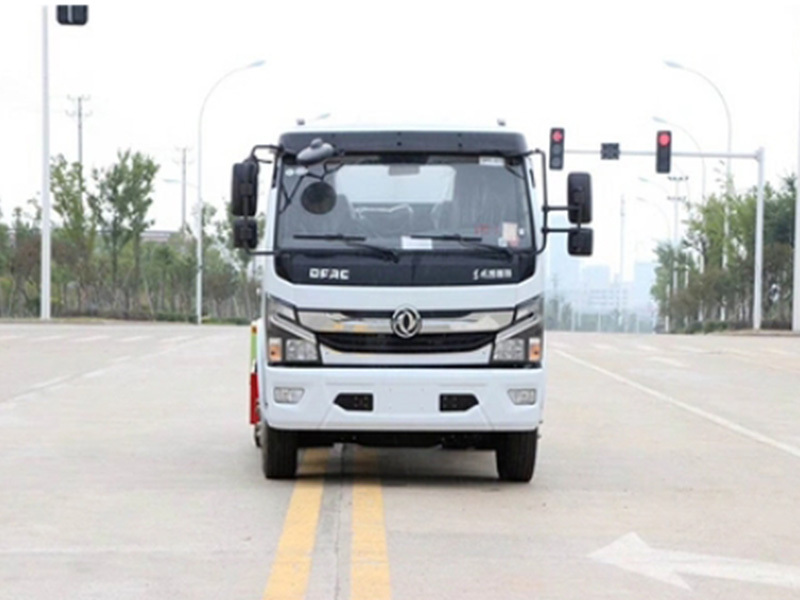

Dongfeng Dolika Water Sprinkler Truck (8-9 cubic meters)：
Chassis Configuration:Dongfeng factory chassis with higher configuration Engine: Yunnei 150 horsepower or Chaochai 170 horsepower Wheelbase: 3800mm Tires: 245 vacuum tires Transmission: Wanliyang 6-speed gearbox Front Axle: 3-ton Rear Axle: 5.5-ton Factory-installed air conditioning Electric windows Central locking system.
Parameter Configuration ：
| Category | Details |
| Tank Capacity | 9.2 cubic meters multifunctional water sprinkler truck |
| Tank Material | 4mm carbon steel Q235 |
| Tank Design | Internal baffles to reduce liquid impact during driving |
| Dimensions | Tank and vehicle dimensions according to the announcement |
| Pump | High-power dedicated sprinkler pump (self-priming and self-discharging) |
| Functions | Front flushing, rear sprinkling, side spraying, 65mm fire interface |
| Rear Platform | Equipped with a green sprinkler cannon, adjustable for full rotation |
| Sprinkler Cannon | Can be adjusted to straight stream, heavy rain, light rain, or drizzle |
| Water Level Indicator | Front head with water level gauge |
| Rear Platform Features | 1-inch flower watering interface, rear ladder |
| Safety Sign | Small safety sign at the rear: "May stop at any time, pay attention to safety" |
| Hoses | Includes two hoses with male and female connectors |
| Tank Color Options | Upper white/lower blue, silver gray/silver blue, and more |
| Tank Markings | Both sides of the tank labeled "Water Sprinkler Truck" and "Greening Sprinkler Truck" with reflective stickers |
Product Details Display
Craft Display
Water cannon 30 meters
Side spray 10 meters
After 15 meters
Hedge 24 meters
Large diameter ball valve
Pumping and drainage
High power water pump
Tank anti-corrosion
Optional Configuration
Sprayer 40-120 meters
Electric water cannon 30 meters
Cab control system
LED Arrow Diverter Light
