10-meter pickup truck aerial work platform"
Classification：
Keyword：
Overview Introduction
Tel：+86-123-4567-8998
Product Details Introduction

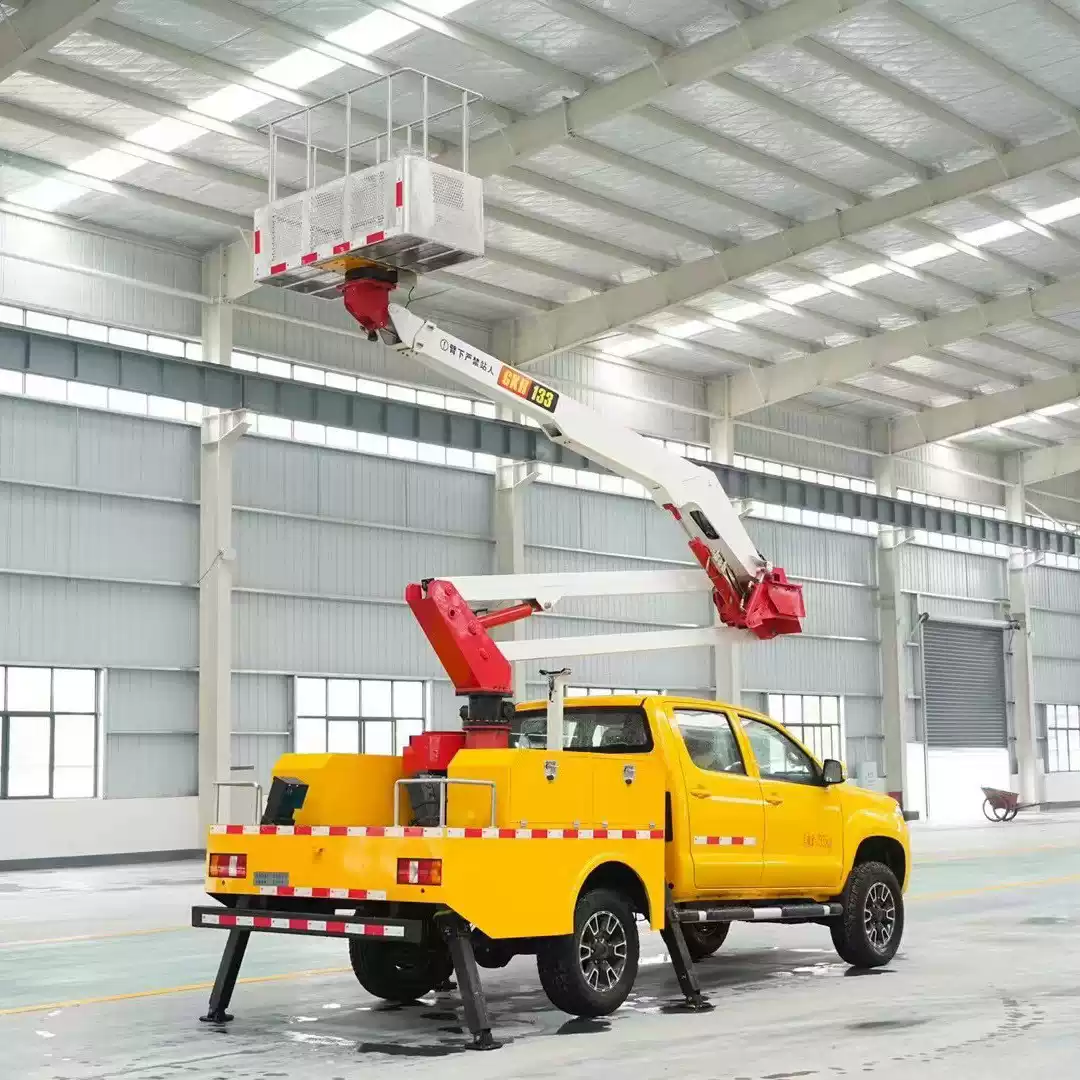

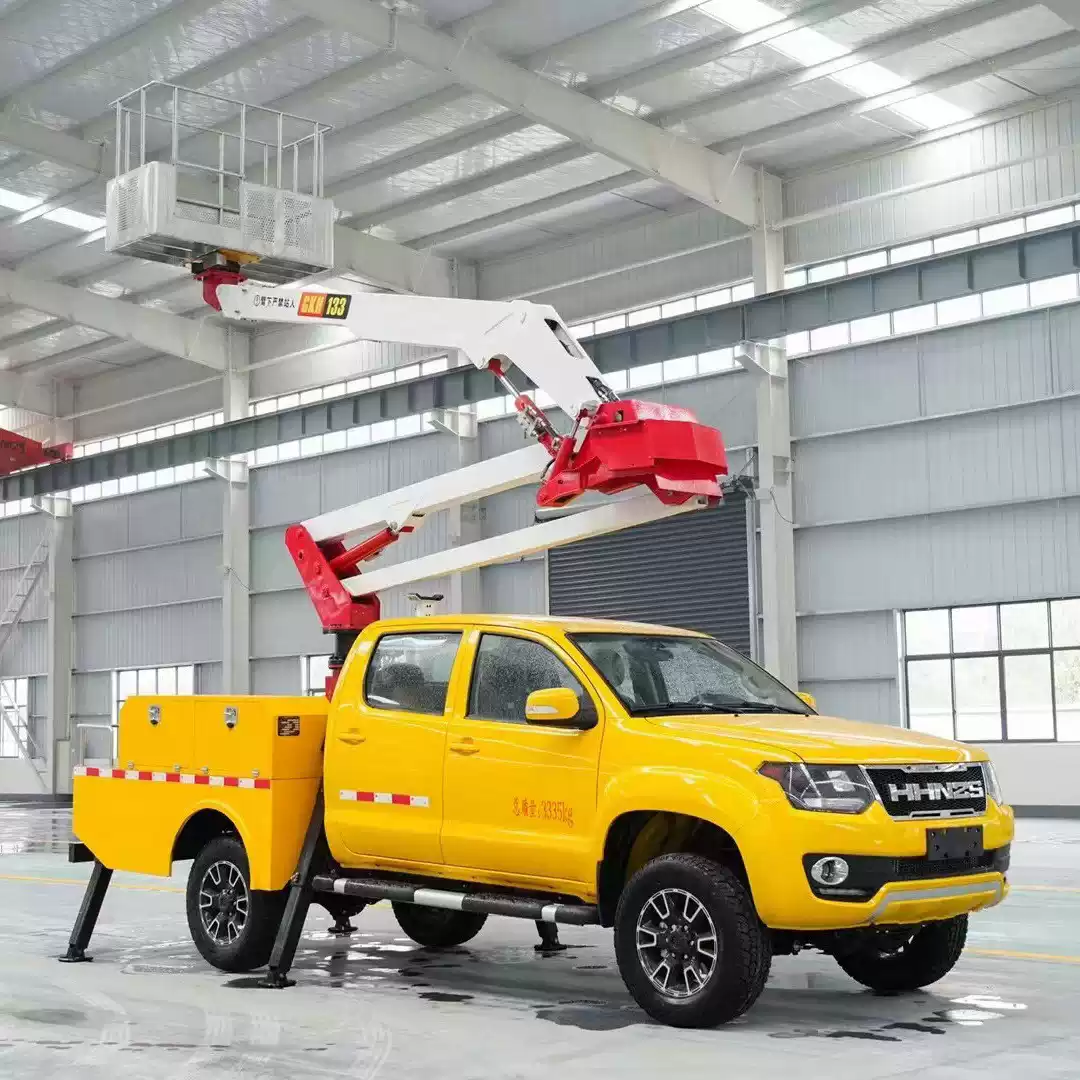

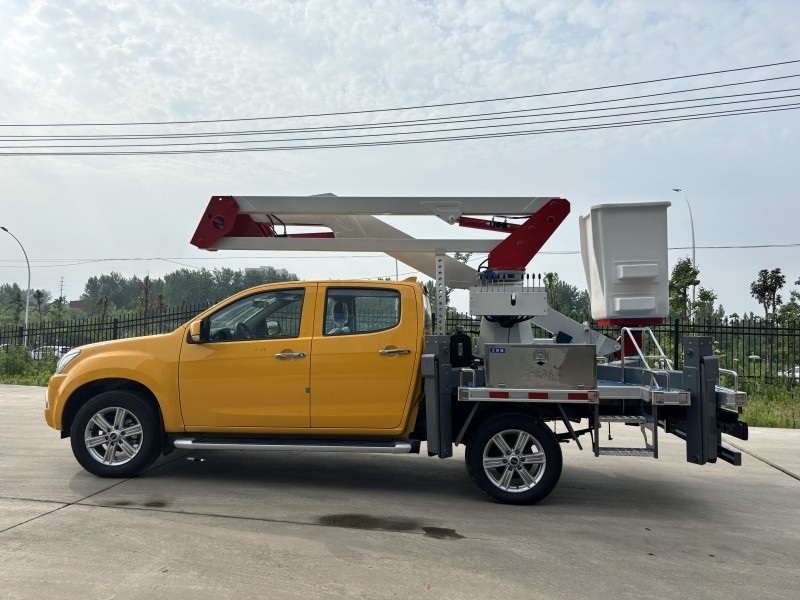

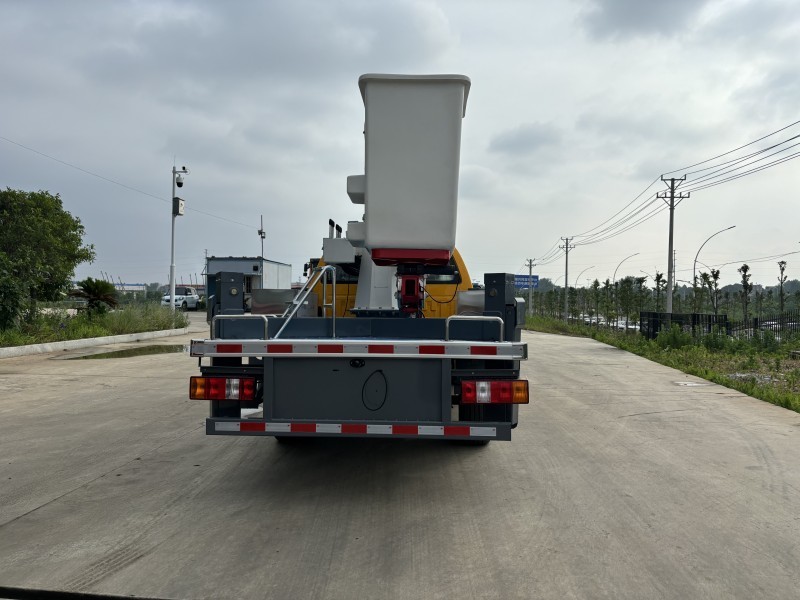

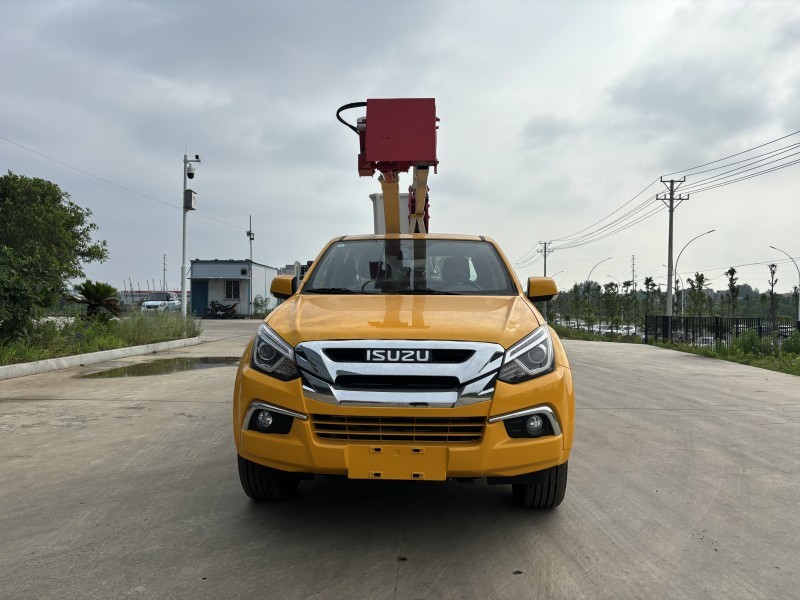

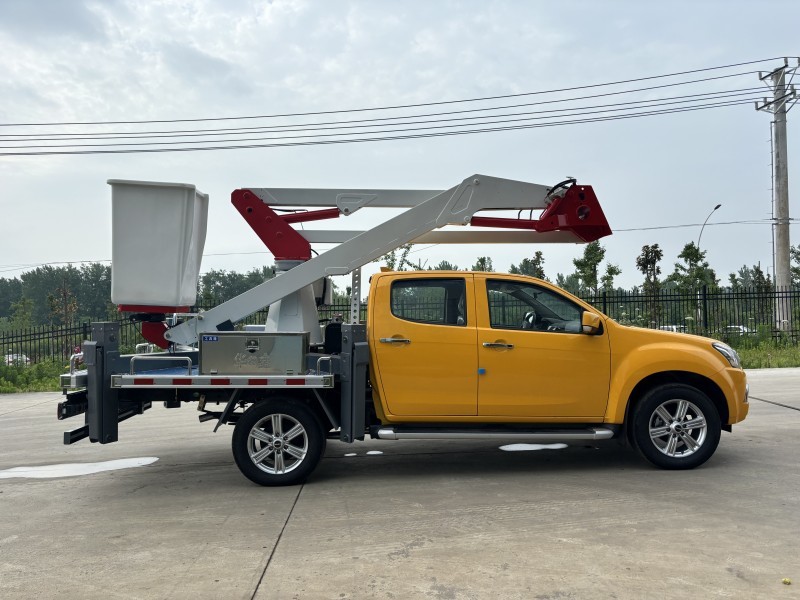

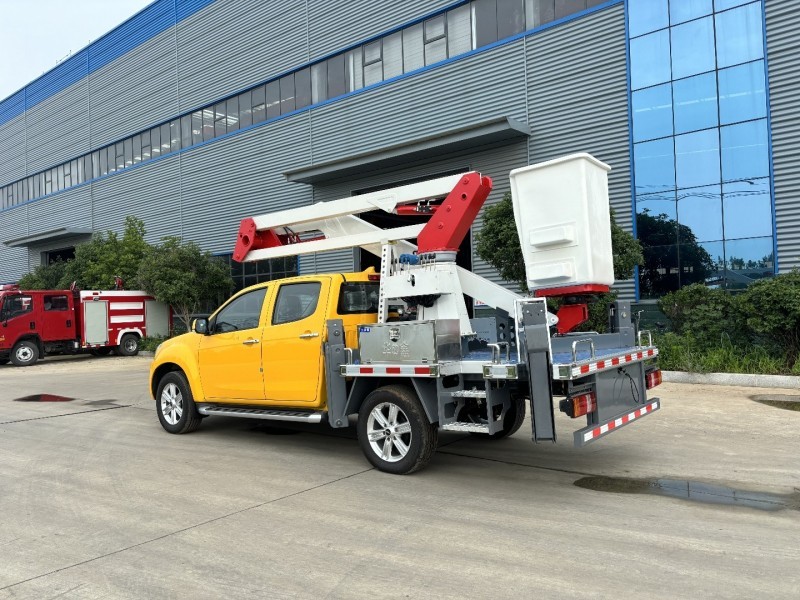

14-meter Pickup Truck Aerial Work Platform**
- **Chassis:** Jiangxi Isuzu
- **Wheelbase:** 3380 mm
- **Chassis Model:** JXW1030CSGP
- **Engine Model:** JE4D25Q6A, 110KW engine
- **Tires:** 255/60R18
- **Other Features:** Automatic transmission, multifunctional steering wheel, 6-speed gearbox, power steering, air conditioning, LCD display, electric windows, etc.
- **Platform Load Capacity:** 200KG
- **Boom Rotation Angle:** 360 degrees
- **Overall Vehicle Dimensions:** 6005*2000*2700 mm
- **Platform Rotation Range:** ±360°
- **Boom:** Three-section telescopic arm
- **Operating System:** Well-known domestic electric control system equipped with wireless remote control
- **Hydraulic System:** Electro-hydraulic proportional valve with stepless speed regulation
- **Hydraulic Stabilizers:** Front V-shaped and rear V-shaped stabilizers with four telescopic legs, adjustable individually
- **Safety Devices:** Interlocking device for boarding and alighting, dual-direction hydraulic balance valve
主要技术参数/Main technical parameters
|
类别 category |
项目 Item |
单位 unit |
数据 Data |
|
|
尺寸参数 size parameter |
总长/vehicle length |
mm |
5998 |
|
|
总宽/vehicle width |
mm |
1950 |
||
|
总高/vehicle height |
mm |
2500 |
||
|
质量参数 Quality parameters |
乘坐人数 (含驾驶员) Number of passengers allowed |
人 |
2+3 |
|
|
总质量/Total mass |
kg |
3495 |
||
|
主要 性能 参数 Main performance parameters |
工作平台额定载荷/working platform load rating |
kg |
120 |
|
|
最大作业高度/MAX. operating height |
m |
13.3 |
||
|
最大作业幅度/MAX. operating range |
m |
6 |
||
|
支腿跨距 outrigger span |
横向/ Transverse direction |
mm |
2200 |
|
|
纵向/Longitudinal direction |
mm |
2100 |
||
|
工作平台回转/work platform rotation |
。 |
360 |
||
|
臂架变幅时间/Arm amplitude change time |
s |
≥60 |
||
|
臂架回转速度/Arm rotation speed |
s/r |
60≤t≤120 |
||
|
支腿收放时间/Leg extension and retraction time |
s |
≤60 |
||
|
行驶参数
Driving parameters |
前悬/Front overhang |
mm |
880 |
|
|
后悬/Rear overhang |
mm |
1605 |
||
|
前伸/protract |
mm |
/ |
||
|
后伸/Extension |
mm |
/ |
||
|
轴距/wheelbase |
mm |
3095/3380 |
||
|
最高行驶速度/Max driving speed |
km/h |
150 |
||
|
最小离地间隙/Min ground clearance |
mm |
198 |
||
|
接近角/Approach angle |
。 |
30 |
||
|
离去角/Departure angle |
。 |
13 |
||
配置说明/CoNFlGURATloN DESCRlpTloN
|
部件名称 component Name |
简要说明 Brief description |
|
底盘/chassis |
五十铃(,SUZU) JXW1030cSGP |
|
发动机/Engine |
JE4D25Q6 2.499L 110KW 150PS |
|
驾驶室配置 cabin configuration |
6挡变速箱, 双叉臂式独立悬架,钢板弹簧非独立后悬架,主/副驾驶座 双安全气囊,定速巡航,倒车视频影像,ABS +EBD,行车自动落锁,儿童 锁,铝合金轮毂,全尺寸备胎, 仿皮座椅。6-speed transmission, double wishbone independent front suspension, leaf spring non-independent rear suspension, dual front airbags (driver and passenger), cruise control, rearview camera, ABS + EBD, automatic door locks while driving, child safety locks, alloy wheels, full-size spare tire, leatherette seats. |
|
围栏及走台板 Fence and waIkway board |
防滑走台板 Anti-slip walkway board |
|
取力系统 power take-off system |
电磁取力机构/Electromagnetic power take-off |
|
工作平台 working pIatform |
800 × 610 × 1100mm (吊篮尺寸可按客户要求定制/The size of the hanging basket can be customized according to customer requirements) |
|
臂架形式 Arm form |
混合臂 (折臂带伸缩) Hybrid Arm (Articulated with Telescopic Function) |
|
回转装置 Rotator |
360。连续回转/360。 continuous rotation |
|
支腿 outrigger |
A 型支腿, 带自动支腿功能 (1次调平) Type A outriggers with automatic leveling function (single- operation leveling) |
|
操作 operate |
无线遥控盒操作, 下车液压手柄操作, 整车可实现全液压电动应急操 作。 wireless remote control box operation, hydraulic handle operation of the vehicle, the entire vehicle can achieve full hydraulic electric emergency operation. |
|
控制系统 controI system |
瑞雅特自研发高空车控制系统, 稳定性强/Ruiyate self-developed high-altitude vehicle control system with strong stability |
|
调平系统 IeveIing system |
组合式自动调平系统 (等容积油缸) combined Automatic Leveling System (Equal volume cylinders) |
基本功能及安全配置lBasic functions and safety configuration
|
名称/Name |
简要说明/Brief |
|
支腿软腿检测 Leg soft leg detection |
实时检测支腿受力状态, 一旦检测到有支腿松动报警限动 Real-time detection of the leg force state, once the leg is detected loose alarm limit movement |
|
上下车自动互锁装置 upper and lower automatic vehicle interlock device |
自动实现上下车互锁, 防止上下车同时操作, 实现安全保护 Automatically interlocks the upper and lower controls to prevent simultaneous operation, ensuring safety protection for aerial work platforms. |
|
应急电动液压泵 Emergency electric-hydraulic pump |
当底盘发动机或液压主泵发生故障时, 将工作人员送回到地面 send the staff back to the ground when the chassis engine or hydraulic main pump fails. |
|
紧急停止装置 Emergency stop device |
用于紧急停止操作 For emergency stop operation |
