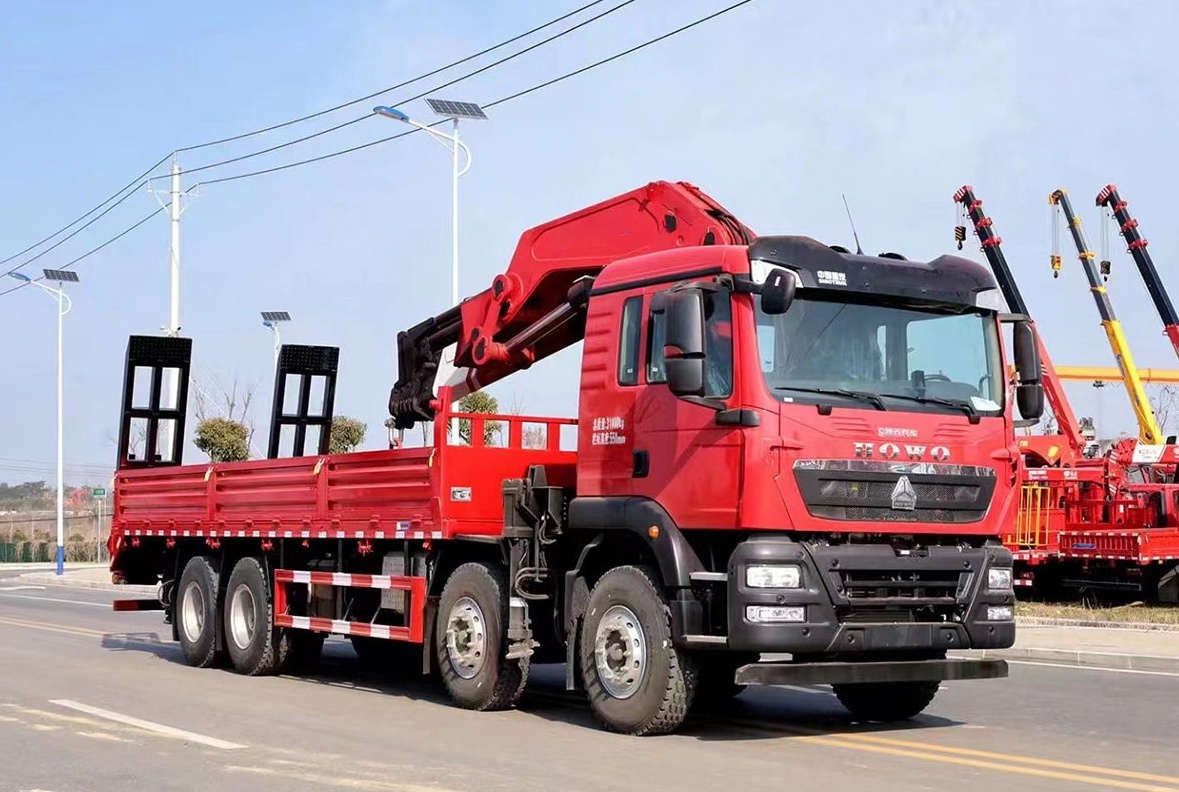

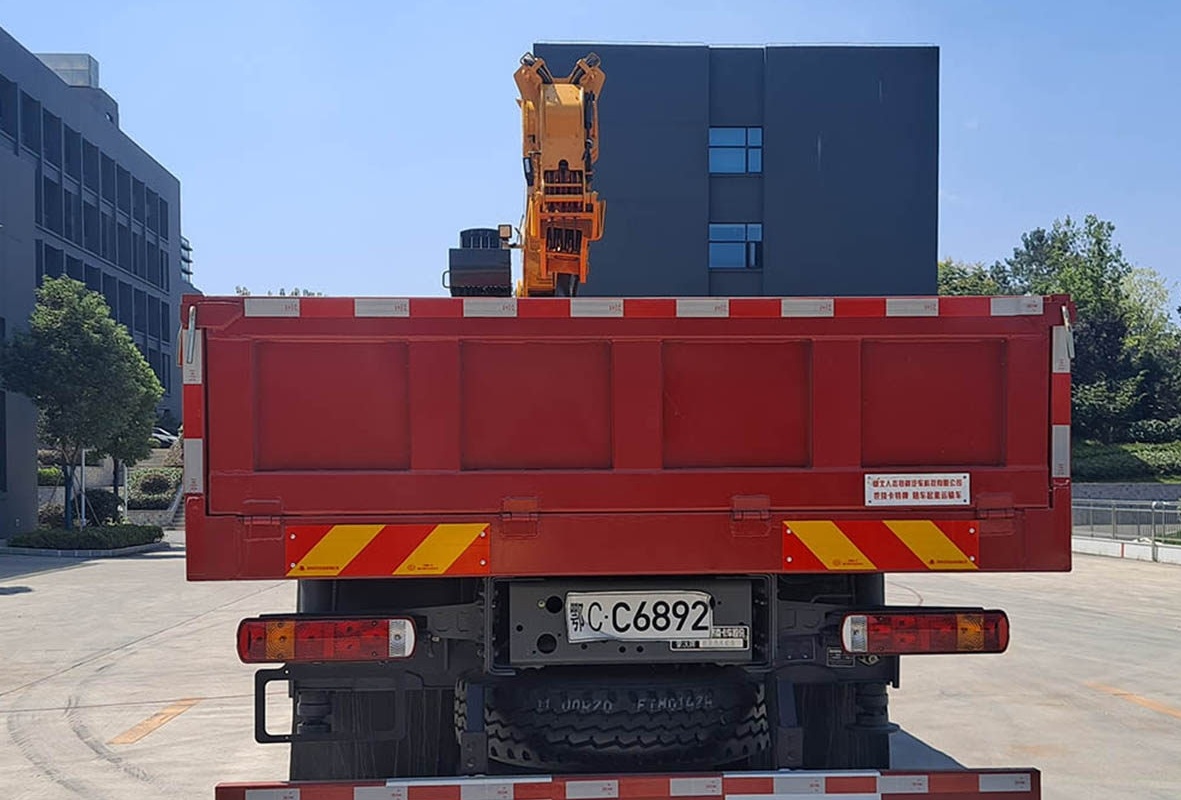

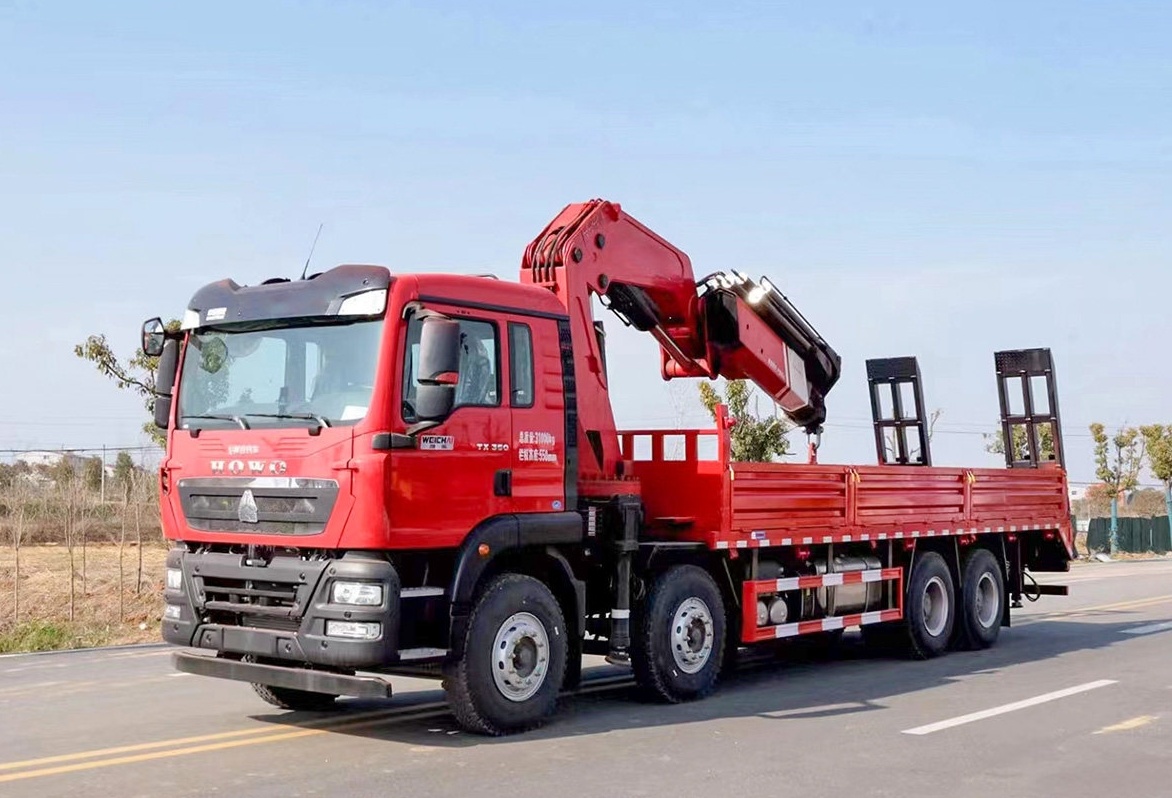

Heavy truck four after eight 12-16 tons truck crane
Classification：
Keyword：
Overview Introduction
Xugong G series (SQS350-5) crane boom length 19.6, lifting height 21.6 meters, double composite front leg, leg span 7.56 meters, upper operation, double pump, with original radiator, over-winding alarm, automatic rewinding hook.
Tel：+86-123-4567-8998
Product Details Introduction
Heavy truck four after eight 12-16 tons onboard crane configuration
Container size: 8300,8500 x 2400,2450 x 550,600 (national standard side three bottom five engineering container)
Chassis configuration: first four and last eight chassis, Weichai 350 engine, transmission: 12-speed transmission with high and low speed (HW25712XSTL), wheelbase: 2100+4300+1350, VGD75 self-adjusting arm front axle (drum) : MAT16ZG, self-adjusting arm double rear axle (drum)-16 tons of wheel reduction axle, with three differential locks, speed ratio: 4.42, frame: three-layer frame with straight crane vertical plate (8+5+8/300), plate spring number: 11/11/12, tires: 11.00R20 tires, TX-K cab, electric heating rearview mirror, electric flipping cab, main airbag + auxiliary simple seat (main seat with electric waist support), Bosch steering machine; Standard exhaust system, three-stage high bumper (all metal), flashlight integrated electric lift, 400L fuel tank, cable PTO, mechanical power switch.
Advantage configuration: Weichai 350 horsepower engine, Haowo 12 speed transmission, chassis bridge integrated matching development, stronger vehicle adaptation, pure German man body cab, three-stage all-metal high bumper, four-point suspension cab and the use of international leading breaking technology, in emergency situations can effectively protect the life safety of drivers and passengers, the main driver adopts network red air bag seat. Multi-directional adjustment with waist support, humanized seat belt design, give you a more comfortable driving experience, through the three-layer frame belt through the crane vertical plate, tailor-made for the crane model, engineering car plate spring and four riding bolts, the best torsion resistance in the industry under complex road conditions, equipped with the best body stability of the V-shaped thrust rod, the body is more stable under heavy load. Sinotruk independently developed double 16-ton wheel deceleration rear axle with three differential locks, deceleration and torque easily cope with various complex road conditions. [Function configuration] : It can be equipped with Xugong G series 12-16 tons straight arm crane or 20-30 tons folding arm crane.
Crane boom: 5 knots
Working radius: 19.6 m
Lifting height: 21.6m
Lifting torque: 35 T.m
Rotation Angle: 360° (continuous)
Leg span: 7.56m
Crane weight: 5723 kg
Hydraulic tank: 270 L
Hydraulic flow: 63+50 L/min
Crane configuration: Xugong G series (SQS350-5) crane boom length 19.6, lifting height 21.6 meters, double composite front leg, leg span 7.56 meters, upper operation, double pump, with original radiator, over-winding alarm, automatic rewinding hook.
Truck crane special function video
Operating parameter
| Straight arm crane | Folding arm crane | ||||||
| Model number | Lifting height(m) | Working radius(m) | Remark | Model number | Lifting height(m) | Working radius(m) | Remark |
| Two tons,two knots | 6.8 | 5.8 | Full rotation | Two tons,two knots | 7.5 | 4.78 | Rack cylinder |
| Two tons and three knots | 9 | 7.7 | Full rotation | 3.2 tons 2 knots | 8.5 | 5.69 | Rack cylinder |
| 3.2 tons 2 knots | 6.8 | 5.5 | Full rotation | 3.2 tons 3 knots | 10 | 7.3 | Rack cylinder |
| 3.2 tons 3 knots | 9.5 | 7.5 | Full rotation | Four tons and three knots | 10.2 | 7.3 | Rack cylinder |
| Four tons and three knots | 10 | 7.93 | Full rotation | Five tons and three knots | 11 | 8 | Full hydraulic, full rotation |
| 4 tons, 4 knots | 11.5 | 9.4 | Full rotation | Five tons, four knots | 12.8 | 9.92 | Full hydraulic, full rotation |
| Five tons and three knots | 10.5 | 8.7 | Full hydraulic, full rotation | 6.3 tons 3 knots | 11 | 8 | Full hydraulic, full rotation |
| Five tons, four knots | 12.5 | 11 | Full hydraulic, full rotation | 6.3 tons 4 knots | 13 | 9.92 | Full hydraulic, full rotation |
| 6.3 tons 3 knots | 11 | 9 | Full hydraulic, full rotation | 8 tons, 4 knots | 13 | 9.75 | Full hydraulic, full slewing, high-altitude seat |
| 6.3 tons 4 knots | 12.8 | 11 | Full hydraulic, full rotation | 10 tons, 4 knots | 13 | 9.75 | Full hydraulic, full slewing, high-altitude seat |
| 8 tons, 4 knots | 13.5 | 11.5 |
Full hydraulic, full rotary, beltHigh-altitude seat |
12 tons, 4 knots | 13 | 9.78 | Full hydraulic, full slewing, high-altitude seat |
| 10 tons, 4 knots | 14 | 12 |
Full hydraulic, full rotary, beltHigh-altitude seat |
14 tons, 5 knots | 14 | 11.4 | Full hydraulic, full slewing, high-altitude seat |
| 12 tons, 4 knots | 14.5 | 12.5 |
Full hydraulic, full rotary, beltHigh-altitude seat |
16 tons, 5 knots | 15 | 12 | Full hydraulic, full slewing, high-altitude seat |
| 14 tons, 4 knots | 17.8 | 15.8 |
Full hydraulic, full rotary, beltHigh-altitude seat |
20 tons, 7 knots | 20 | 16.8 | Full hydraulic, full slewing, high-altitude seat |
| 16 tons, 5 knots | 20 | 18.5 |
Full hydraulic, full rotary, beltHigh-altitude seat |
25 tons, 9 knots | 20 | 16.4 |
Full hydraulic, full rotary, with high seat Chair, wireless remote control |
| 20 tons, 6 knots | 26.35 | 24.35 |
Full hydraulic, full rotary, beltHigh-altitude seat |
30 tons 7 knots | 16.2 | Full hydraulic, full slewing, high-altitude seat | |
Product Details Display
Craft Display
main rack
Illuminated work lights
hydraulic winches
Hydraulic multi-way valves
front outriggers
Crane arm telescopic mechanism
balancing valve
Slewing bearings
Slewing reducer
Overcoil Alarm
Auxiliary rear outriggers
Luffing Cylinder
Optional Configuration
bricklayer
Double Basket
Hydraulic Climbing Ladder
wood grabber
wood grabber
self-discharging function
drill rod
Single basket
