Dry Powder and Foam Combined 5300GXFGP120/Z6 Model
Classification：
Keyword：
Overview Introduction

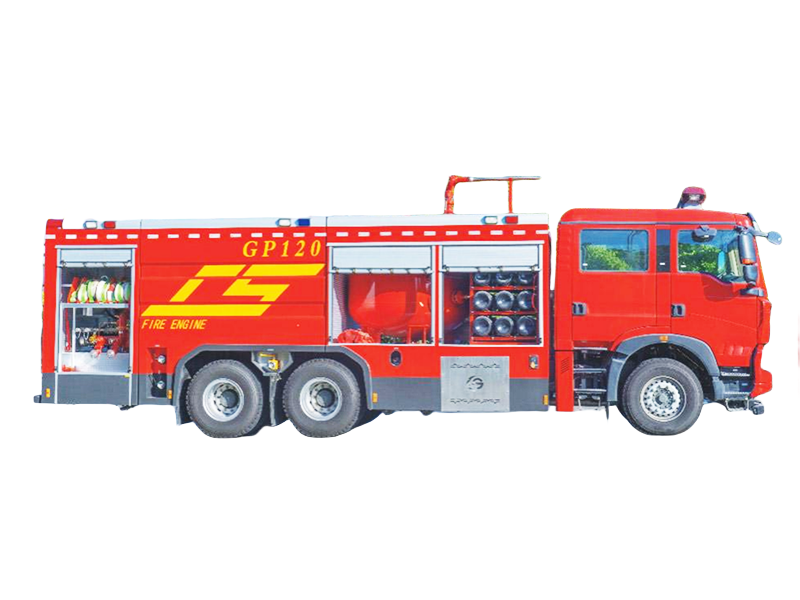

The GP/GL120 Dry Powder, Foam, and Water Combined Fire Truck is built on the Sinotruk ZZ5357TXFV464MF5 Class II automotive chassis, featuring an original double-row cab with a seating capacity of 2+4 people, offering a comfortable and easy driving experience.
Tel：+86-123-4567-8998
Product Details Introduction
Performance Characteristics：
The GP/GL120 Dry Powder, Foam, and Water Combined Fire Truck is built on the Sinotruk ZZ5357TXFV464MF5 Class II automotive chassis, featuring an original double-row cab with a seating capacity of 2+4 people, offering a comfortable and easy driving experience. The upper structure includes an exposed water tank and equipment compartments with high-quality aluminum alloy roll-up doors. The chassis is powered by an MC11.44-61 engine with a high power output of 341 kW. It is equipped with a Shanghai Xiongzhen CB10/80 low-pressure fire pump, delivering a flow rate of 80 L/s. The roof is fitted with a PS8/80W fire monitor, capable of a flow rate of 80 L/s, a water range of ≥85 meters, and 360° rotation. Additionally, the vehicle is equipped with a PF40 dry powder cannon, with an effective discharge rate of ≥40 kg/s and an effective range of ≥40 meters. This fire truck is characterized by its high power-to-weight ratio, strong comprehensive performance, and centralized, user-friendly controls.
Parameter Configuration ：
| No. | Name | Parameters: 5300GXFGP120/Z6 Dry Powder Foam Combined Use | Parameters: 5300GXFGL120/Z6 Dry Powder Water Combined Use |
| 1 | Dimensions (mm) | 10380x2550x3810 | 10380x2550x3810 |
| 2 | Chassis Model | Howo | Howo |
| 3 | Wheelbase (mm) | 4600+1400 | 4600+1400 |
| 4 | Engine Model | Heavy Duty | Heavy Duty |
| 5 | Engine Power/Horsepower | 341Kw 460HP | 341KW 460HP |
| 6 | Occupants (Including Driver) (Persons) | Original Double Cab 2+4 People | Original Double Cab 2+4 People |
| 7 | Fire Extinguishing Agent Capacity (kg) | Water ≥6000 Foam ≥3000 Dry Powder ≥3000 | Water ≥9000 Dry Powder ≥3000 |
| 8 | Fire Pump Flow Rate | Constant Pressure Pump 80L/s@1.0MPa | Constant Pressure Pump 80L/s@1.0MPa |
| 9 | Fire Gun Flow Rate, Range | 64L/s@0.8MPa Water ≥73m Dry Powder Foam >40m Ejection Rate >40kg/s | 80L/s@0.8MPa Water ≥85m Dry Powder Foam ≥40m Ejection Rate >40kg/s |
Product Details Display
