FAW Han V 8x6 Aluminum Alloy Fuel Tanker
Classification：
Keyword：
Overview Introduction
This vehicle is suitable for the transportation of hazardous materials. Hazard class number: 3. The type of vehicle for transporting dangerous goods is FL. It is equipped with a speed limiting device, with a maximum speed of 80 km/h. The effective tank volume is 25.5 cubic meters, and the external dimensions of the tank (length x width x height) are 8400 x 2400 x 1700 mm.
Tel：+86-123-4567-8998
Product Details Introduction

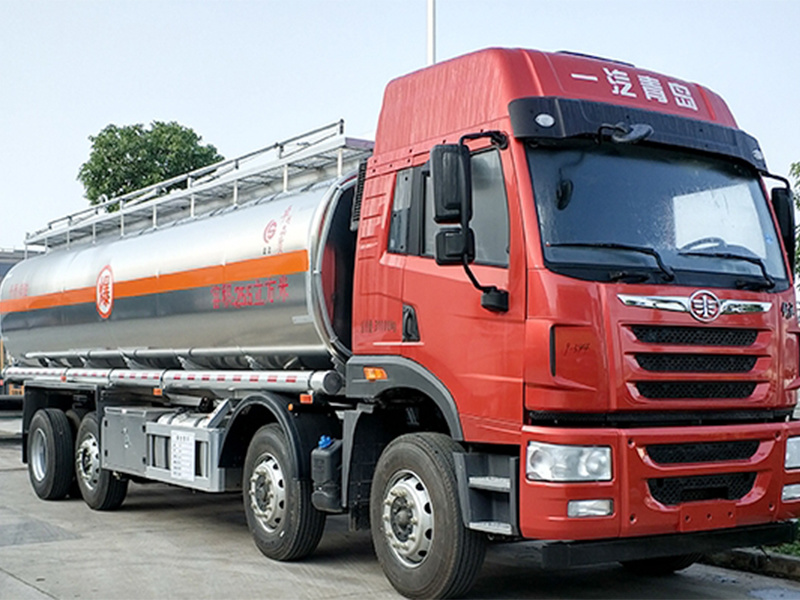

FAW Han V 8x6 Aluminum Alloy Fuel Tanker:
This vehicle is suitable for the transportation of hazardous materials. Hazard class number: 3. The type of vehicle for transporting dangerous goods is FL. It is equipped with a speed limiting device, with a maximum speed of 80 km/h. The effective tank volume is 25.5 cubic meters, and the external dimensions of the tank (length x width x height) are 8400 x 2400 x 1700 mm.
The side and rear protective materials are made of Q235. The side protection is bolted, and the rear protection is welded, with a cross-sectional dimension of 120 x 50 mm, and the lower edge is 500 mm above the ground.
The cab can be optionally selected with the chassis. Only chassis with a front-mounted muffler, speed limiting device, front wheel disc brakes, and radial tires are used. A driving recorder with satellite positioning functionality is installed.
Vehicle Introduction and Specific Parameters：
| Brand Name | ChuSheng | Announcement Batch | 295 |
| Product Name | CSC5310GYYLCAA Aluminum Alloy Fuel Tanker | Product Number | ZMX0V5FS01D |
| Gross Vehicle Weight (Kg) | 31000 | Tank Volume (m³) | 25.5 |
| Rated Payload (Kg) | 20225, 20160 | Overall Dimensions (mm) | 11200×2500×3270, 3400 |
| Curb Weight (Kg) | 10645 | Cargo Compartment Dimensions (mm) | -- |
| Rated Passenger Capacity (persons) | -- | Trailer Gross Weight (Kg) | -- |
| Cab Seating Capacity (persons) | 2, 3 | Load Utilization Coefficient | -- |
| Approach/Departure Angle (°) | 18/12 | Front/ Rear Overhang (mm) | 1375/2415 |
| Number of Axles | 4 | Axle Spacing (mm) | 1900+4160+1350 |
| Axle Load (Kg) | 6500/6500/6500/11500 | Maximum Speed (Km/h) | 80 |
Chassis Technical Parameters：
| Chassis Model | CA1311P1K2L6T10BE5A80 | Chassis Name | Cab-Over Diesel Cargo Chassis (Category II) |
| Brand Name | Jiefang | Manufacturer | First Automobile Works of China |
| Overall Dimensions (mm) | 10890×2490×2910, 3270 | Number of Tires | 10 |
| Approach/Departure Angle (°) | 18/12 | Tire Specifications | 295/80R22.5, 315/80R22.5, 11.00R20 |
| Leaf Spring Configuration | 12/12/6+-/10+9, 3/3/6+-/10+9, 10/10/6+-/10+9 | Front Track (mm) | 1964/1964 |
| Fuel Type | Diesel | Rear Track (mm) | 1960/1847 |
Product Details Display
OUR ADVANTAGES
Focusing on quality, win-win cooperation, providing professional car modification services for enterprises and individuals, precision production, and worry free after-sales service
Factory Show
● More than 70 professional workshops for 800 types of special purpose trucks ;
● More than 12,600 staffs including 800 D persons and 5000 technical workers ;
● Top 4 in Hubei Private Manufacturing Companies ;
● Top 500 of China private Companies ;
Production Process
● Truck Chassis ordering ;
● Superstructure frame welding and installation ;
● Main function equipment installation ;
● Testing before painting ;
● Customized logo design and painting ;
Our Advantage
● Long term cooperation with DONGFENG, SINOTRUK, FAW, FOTON, SHACMAN, JAC, ISUZU and so on ;
● Available for truck spare parts at factory price ;
● Available for overseas after-sale service ;
Complete After-Sale Service
● Pre-sales Service: Communicate with customers, analyze their needs ;
● Sales Service: Provide professional technical solutions, recommend the right models accordingly ;
Production Factory Display
Chengli Special Purpose Vehicle Company currently has over 3000 sets of specialized vehicle production equipment and over 600 sets of testing equipment; Each specialized vehicle category has strict assembly line production, forming a complete specialized vehicle production system; Some of the machining centers and production lines are at a leading level both domestically and internationally.
Qualification Certificate
Passed: ISO9001-2008 quality management, OHSAS18001 occupational health and safety management system certification, ISO 14001 environmental management, 3C mandatory certification, GJB9001B-2009 national military standard certification and confidentiality certification (national level three), automotive energy conservation and environmental protection certification, automotive exemption certification, American mechanical engineer ASME certification, EU agreement ADR certification.
OUR SERVICES
Dear customer,
Thanks for purchasing the product of ChengLi Special Automobile Co., Ltd!
We follow the quality policy as below: product leadership is our eternal target, customer satisfaction is our relentless pursuit, quality service is our best commitment, so we make our promises as follow:
1.Free maintenance and time
1)Tracking service time: lifelong
2)From the date of receiving, in normal use within 30000km or within one year, we will repair for free, but easy wear parts and electrical parts are not included. After one year, we only charge the maintenance cost.
2. After warranty time
1)Method: according to customer's requirement, the parts will send by our after sale department or send directly by local chassis service station
2) Parts only charge cost, no other charges
3. Chassis problem, please find the nearest chassis service station for repair, the detailed address please find the maintenance manual book or call our company after sale service number.
ChengLi Automobile Co., Ltd tries our best to service you.
E-mail:clwspecauto@gmail.com
WhatsApp:13872880802
FAQ
What Is The Package?
We offer wooden case, steel frame packaging, or according to customer's demand.
Can I Visit Your Company?
Welcome, look forward to your arrival and we will pick up you from the airport and lead you to visit our factory .
Are You Trading Company Or Manufacturing Factory?
We are both trading company and manufacturer. We have our own factory for more than ten years, and we established a new trading company for better service of overseas customers. Welcome to send your inquiry!
How About The Delivery Time?
Generally, it will take 40 to 60 days after receiving your advanced payment. The specific delivery time depends on the items and the quantity of your order.
How Can You Guarantee The Product Quality?
We have the quality control system ISO9001:2008, and it's been followed strictly. We also have the professional QC team to guarantee the quality.
I'D Like To Know Your Payment Terms.
T/T 40% as deposit, and 60% before delivery. We'll show you the photos of the products and packages before you pay the balance.
How About Shipping?
Big size trucks always shipping by RORO or Bulk ship, small type can shipping by container. Please contact us to get a shipping quotation.
Could Your Company Provide Customized Products?
Of course, we can provide the customized-designing product meeting with your demand.
Do You Have Any One In Stock?
In general, we don't have stock. Our products are all manufactured according to customers' requirements. So our products are all different and special.
Can You Give Us The Technical Drawing And Data?
Our products are all custom made. Usually you need to provide us with the drawings. And if you do not have it, some important data is also necessary. We can help you design it after we signed the contract and confidentiality agreement.
Do You Provide After-Sales Service?
Yes, we do. This product is guaranteed up to one year from purchase unless man-made damage. If there is anything wrong with product itself quality problem, we will change or repair it at our charge. If not, we will provide after-sales service at your charge.
