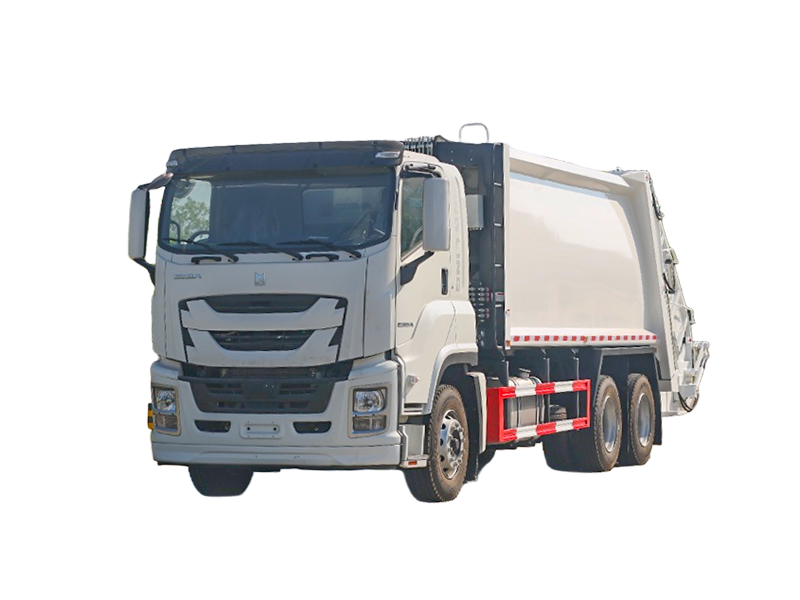

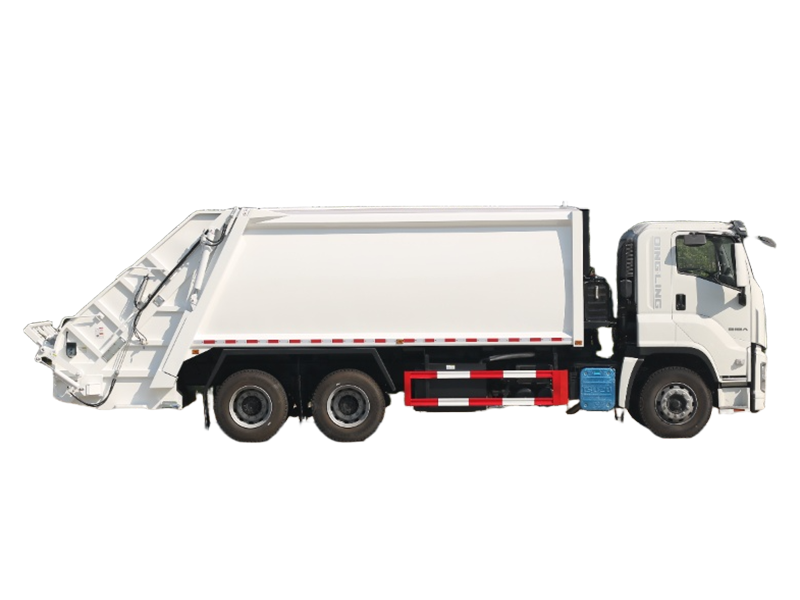

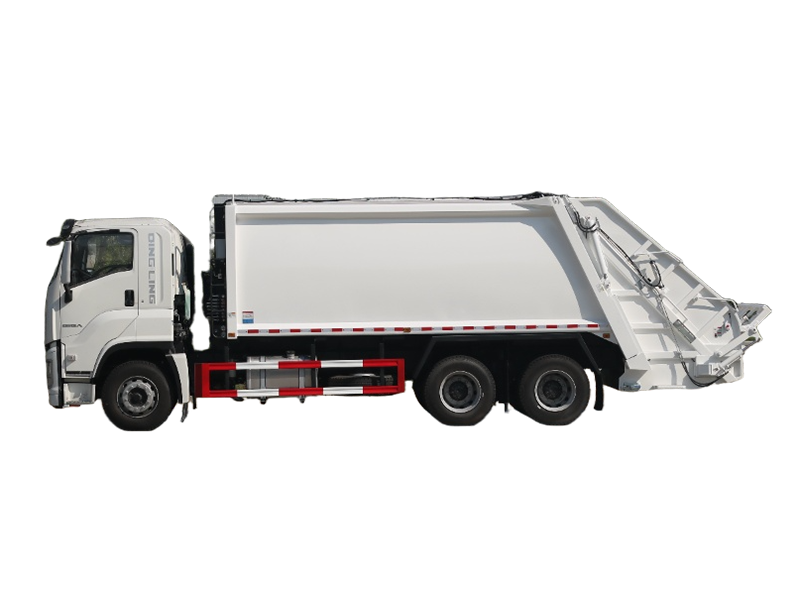

Qingling Isuzu 16-20 cubic meter garbage compactor truck
Classification：
Keyword：
Overview Introduction
National VI Qingling Isuzu 16-20 cubic compression garbage truck has good chassis performance, strong power, upper curved box design, advanced and beautiful appearance, reasonable structure, complete configuration, especially suitable for garbage collection, compression and transportation in towns and villages.
Tel：+86-123-4567-8998
Product Details Introduction
The six QingLing Iuzu 16-20 square compression garbage truck, the car chassis performance is good, powerful, top arc box design, advanced beautiful, reasonable structure, complete configuration, new CAN bus control system, electrical integration design, automation, high work efficiency, convenient operation and maintenance, optional bucket flip mechanism or garbage bucket flip mechanism, especially suitable for urban and rural garbage collection, compression and transport.
Qingling Isuzu State 616-20 square compression garbage truck | |
Chassis model | Isuzu giant coffee GIGA country six chassis |
Chassis manufacturer | Qingling Automobile Co., Ltd |
pilothouse | Original Isuzu single row, can take 2 people |
Box volume | 16 Cubic |
Box material | High strength steel, arc box |
navar | CAN bus intelligent system, electric-hydraulic integrated control |
dumping gear | 1. Optional rear bucket flip mechanism (120,240,360,660 and 1100) 2. The garbage bucket tipping mechanism is optional |
engine | 6 UZ 1-TCG61 (National 6 Standard 380 HP) 6 WG 1-TCG60 (State 6 standard 420 hp) 6 WG 1-TCG61 (State 6 standard 460 hp) 6 WG 1-TCG62 (State 6 standard 520 hp) |
Tyre model | 295/80R22.5 ¥295/80R22.5 12R22.5 |
Number of tires | 10 + 1 (64) drive |
outline dimension | 10270×2500×3380mm |
wheel base | 4600 + 1370MM 4600 + 1370 mm |
Isuzu compression type garbage truck performance characteristics | |
pilothouse | Flat head all-metal enclosed cab, single row cab, panoramic curved type windshield. Select a new front cover, front bumper, front combination lamps, car doors and Windows, front surrounding lower mask. |
The strength of the box is high | The box body adopts high strength steel quality, integrated side plate bending design, not easy to deformation, high precision strength, longer life. |
Good economy | The computer control system automatically controls the throttle when the special equipment is working |
Double insurance system | CAN bus electronic control system, with the computer control box received operation dual functions, greatly guarantee and improve the vehicle safety utilization rate |
Intelligent selection | Optional GPS, front and rear reversing image, hanging bucket or garbage bucket after turning mechanism, water hand washing box, etc. |
Product Details Display
OUR ADVANTAGES
Focusing on quality, win-win cooperation, providing professional car modification services for enterprises and individuals, precision production, and worry free after-sales service
Factory Show
● More than 70 professional workshops for 800 types of special purpose trucks ;
● More than 12,600 staffs including 800 D persons and 5000 technical workers ;
● Top 4 in Hubei Private Manufacturing Companies ;
● Top 500 of China private Companies ;
Production Process
● Truck Chassis ordering ;
● Superstructure frame welding and installation ;
● Main function equipment installation ;
● Testing before painting ;
● Customized logo design and painting ;
Our Advantage
● Long term cooperation with DONGFENG, SINOTRUK, FAW, FOTON, SHACMAN, JAC, ISUZU and so on ;
● Available for truck spare parts at factory price ;
● Available for overseas after-sale service ;
Complete After-Sale Service
● Pre-sales Service: Communicate with customers, analyze their needs ;
● Sales Service: Provide professional technical solutions, recommend the right models accordingly ;
Production Factory Display
Chengli Special Purpose Vehicle Company currently has over 3000 sets of specialized vehicle production equipment and over 600 sets of testing equipment; Each specialized vehicle category has strict assembly line production, forming a complete specialized vehicle production system; Some of the machining centers and production lines are at a leading level both domestically and internationally.
Qualification Certificate
Passed: ISO9001-2008 quality management, OHSAS18001 occupational health and safety management system certification, ISO 14001 environmental management, 3C mandatory certification, GJB9001B-2009 national military standard certification and confidentiality certification (national level three), automotive energy conservation and environmental protection certification, automotive exemption certification, American mechanical engineer ASME certification, EU agreement ADR certification.
OUR SERVICES
Dear customer,
Thanks for purchasing the product of ChengLi Special Automobile Co., Ltd!
We follow the quality policy as below: product leadership is our eternal target, customer satisfaction is our relentless pursuit, quality service is our best commitment, so we make our promises as follow:
1.Free maintenance and time
1)Tracking service time: lifelong
2)From the date of receiving, in normal use within 30000km or within one year, we will repair for free, but easy wear parts and electrical parts are not included. After one year, we only charge the maintenance cost.
2. After warranty time
1)Method: according to customer's requirement, the parts will send by our after sale department or send directly by local chassis service station
2) Parts only charge cost, no other charges
3. Chassis problem, please find the nearest chassis service station for repair, the detailed address please find the maintenance manual book or call our company after sale service number.
ChengLi Automobile Co., Ltd tries our best to service you.
FAQ
What Is The Package?
We offer wooden case, steel frame packaging, or according to customer's demand.
Can I Visit Your Company?
Welcome, look forward to your arrival and we will pick up you from the airport and lead you to visit our factory .
Are You Trading Company Or Manufacturing Factory?
We are both trading company and manufacturer. We have our own factory for more than ten years, and we established a new trading company for better service of overseas customers. Welcome to send your inquiry!
How About The Delivery Time?
Generally, it will take 40 to 60 days after receiving your advanced payment. The specific delivery time depends on the items and the quantity of your order.
How Can You Guarantee The Product Quality?
We have the quality control system ISO9001:2008, and it's been followed strictly. We also have the professional QC team to guarantee the quality.
I'D Like To Know Your Payment Terms.
T/T 40% as deposit, and 60% before delivery. We'll show you the photos of the products and packages before you pay the balance.
How About Shipping?
Big size trucks always shipping by RORO or Bulk ship, small type can shipping by container. Please contact us to get a shipping quotation.
Could Your Company Provide Customized Products?
Of course, we can provide the customized-designing product meeting with your demand.
Do You Have Any One In Stock?
In general, we don't have stock. Our products are all manufactured according to customers' requirements. So our products are all different and special.
Can You Give Us The Technical Drawing And Data?
Our products are all custom made. Usually you need to provide us with the drawings. And if you do not have it, some important data is also necessary. We can help you design it after we signed the contract and confidentiality agreement.
Do You Provide After-Sales Service?
Yes, we do. This product is guaranteed up to one year from purchase unless man-made damage. If there is anything wrong with product itself quality problem, we will change or repair it at our charge. If not, we will provide after-sales service at your charge.
