ISUZU 30m Aerial Work Vehicle
Classification：
Keyword：
Overview Introduction

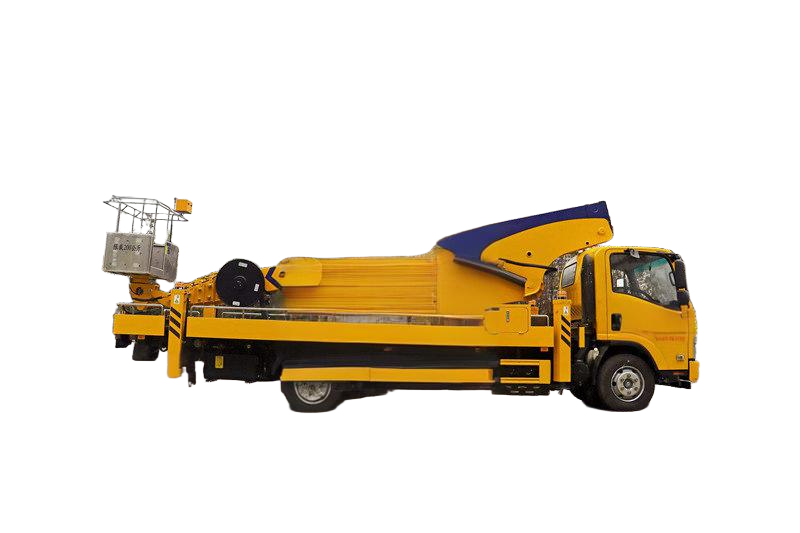

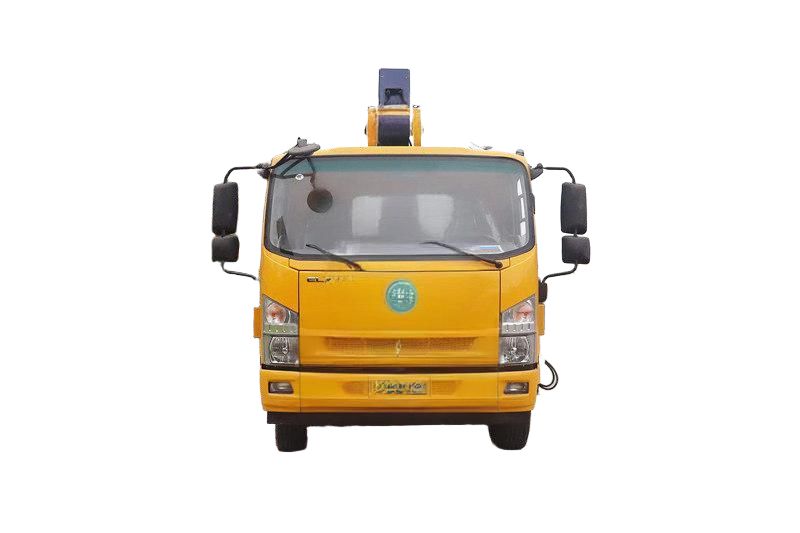

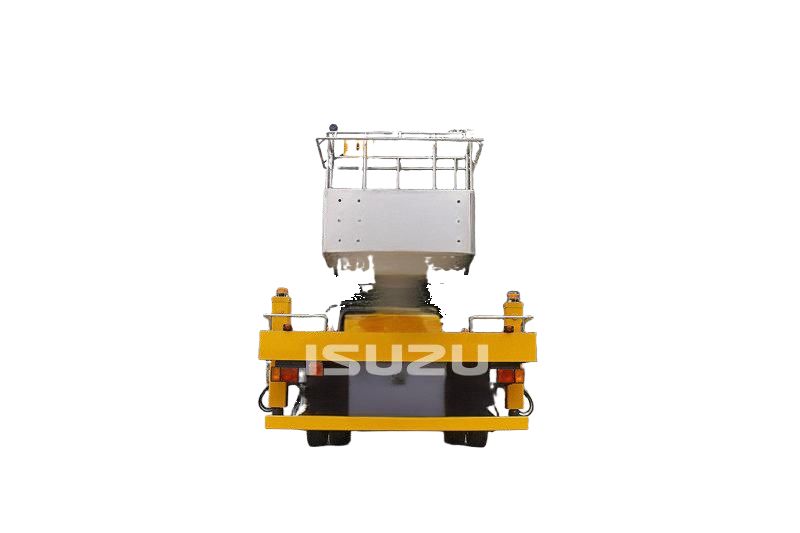

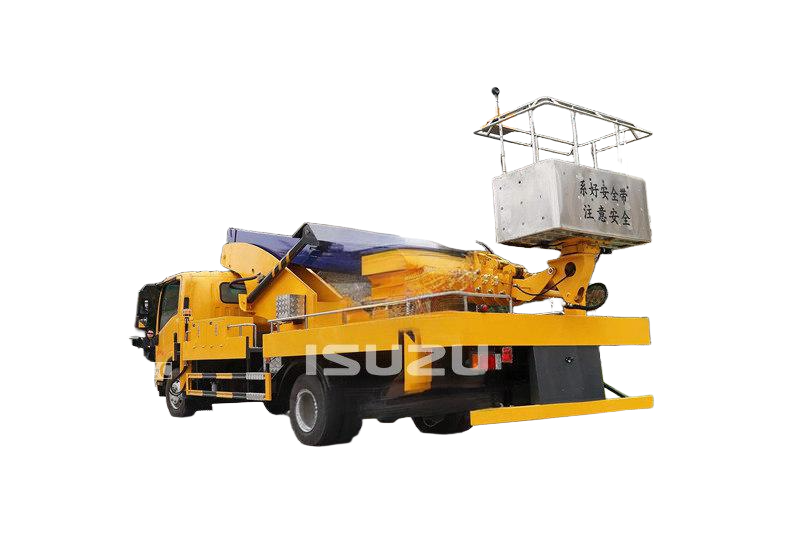

ISUZU 30m Aerial Work Vehicle
Tel：+86-123-4567-8998
Product Details Introduction
National 60 zu 700P straight arm telescopic arm aerial vehicle, mainly for the industry: power maintenance, municipal garden, advertising operations. The car uses isuzu municipal special chassis, the use of mechanical and electrical liquid integration, reliability design and computer aided design and other technologies, reasonable setting of a variety of counterweight modules, effectively balance the working moment. Ensure the stability of the vehicle driving and operation process.
Upper configuration: The aerial work platform has a lifting height of 22 meters (including the operator's height of 1.7 meters), with a full 360-degree hydraulic rotation and three folding arms. The arm series can be equipped with a 1-ton hook. It features a single hydraulic lift cylinder, using high-quality imported directional balance valves, and is controlled by an electric control system for operating the lift arm. A non-extendable 1-ton hook is mounted on the main boom, ensuring safety and reliability. The four adjustable hydraulic cylinders have bidirectional hydraulic locks (the leg operation is manual and controllable separately). The legs interlock with the working arm to prevent accidental operation. Equipped with a work bucket (200 kg) and a small crane, it can function as a mini crane; the operation is flexible and convenient.
|
National 60700P telescopic arm high working vehicle-24 meters |
||
|
Cylinder type |
QL1110ANLAY |
|
|
Chassis manufacturer |
Qingling Automobile Co., Ltd |
|
|
Cab occupant |
The original single row can seat 3 people |
|
|
Maximum operation height |
30 m (26m and 30m optional) |
|
|
Maximum operation range |
10.5 Meters |
|
|
Arm type |
Four segments of telescopic arms |
|
|
Work bucket load |
200 Kg |
|
|
operate |
The turntable and the working bucket are operated independently in two positions. |
|
|
engine |
4HK1-TCG 61 (190 HP) |
|
|
Tyre model |
235/75R17.5 |
|
|
Number of tires |
6 + 1 (42) drive |
|
|
outline dimension |
8250×2500×3150mm |
|
|
wheel base |
4175mm |
|
|
pilothouse |
Flat head all metal enclosed cab, double row cab, panoramic curved windshield. Optional new front cover, front bumper, front combination lamps, doors and Windows, front surround hood. |
|
|
structure |
Using the new high strength ultra-thin structure, the vehicle design is lightweight, compact and low center of gravity, which brings the vehicle performance to the extreme. |
|
|
cantilever crane |
The boom adopts high strength steel plate HG 60 / 5 ㎜ welded molding, the leg adopts low alloy Q345 profile, no weld seam around, beautiful appearance, high strength; the arm hinge, reduce the height of the vehicle and center of gravity, compact structure and beautiful appearance; |
|
|
intelligence |
Get off and on interlock, turntable and bench double operation, electro-hydraulic ratio speed regulation. |
|
|
safe |
Inside the static hydraulic leveling balance mechanism, dangerous working condition alarm, excellent safety performance |
|
主要技术参数/Main technical parameters
|
类别 category |
项目 Item |
单位 unit |
数据 Data |
|
|
尺寸参数 size parameter |
总长/vehicle length |
mm |
5940 |
|
|
总宽/vehicle width |
mm |
2080 |
||
|
总高/vehicle height |
mm |
2860 |
||
|
质量参数 Quality parameters |
乘坐人数 (含驾驶员) Number of passengers allowed |
人 |
3 |
|
|
总质量/Total mass |
kg |
4495 |
||
|
主要 性能 参数 Main performance parameters |
工作平台额定载荷/working platform load rating |
kg |
200 |
|
|
最大作业高度/MAX. operating height |
m |
30 |
||
|
最大作业幅度/MAX. operating range |
m |
11/13 |
||
|
支腿跨距 outrigger span |
横向/ Transverse direction |
mm |
5600 |
|
|
纵向/Longitudinal direction |
mm |
5000 |
||
|
工作平台回转/work platform rotation |
。 |
360 |
||
|
臂架变幅时间/Arm amplitude change time |
s |
≥60 |
||
|
臂架回转速度/Arm rotation speed |
s/r |
60≤t≤120 |
||
|
支腿收放时间/Leg extension and retraction time |
s |
≤60 |
||
|
行驶参数
Driving parameters |
前悬/Front overhang |
mm |
1110 |
|
|
后悬/Rear overhang |
mm |
2525 |
||
|
前伸/protract |
mm |
/ |
||
|
后伸/Extension |
mm |
/ |
||
|
轴距/wheelbase |
mm |
3360 |
||
|
最高行驶速度/Max driving speed |
km/h |
100 |
||
|
最小离地间隙/Min ground clearance |
mm |
410 |
||
|
接近角/Approach angle |
。 |
/ |
||
|
离去角/Departure angle |
。 |
/ |
||
配置说明/CoNFlGURATloN DESCRlpTloN
|
部件名称 component Name |
简要说明 Brief description |
|
底盘/chassis |
五十铃(,SUZU) JXW1040cDJ2 |
|
发动机/Engine |
JE493ZLQ6K 2.499L 93KW 125PS |
|
驾驶室配置 cabin configuration |
四轮独立通道ABS, 空调, 遥控钥匙, 日间行车灯, 多功能方向盘, 定速 巡航, 中控锁, 电动门窗, 电加热后视镜。Four independent-channel ABS, air conditioner, remote control key, daytime running lights, multi-functional steering wheel, cruise control, central locking system, electric windows, electrically heated rearview mirrors. |
|
围栏及走台板 Fence and waIkway board |
不锈钢围栏, 铝合金防滑走台板 Stainless steel fence, aluminum alloy anti slip walkway board |
|
取力系统 power take-off system |
气动取力/Pneumatic power take-off |
|
工作平台 working pIatform |
1600× 700× 1000mm (吊篮尺寸可按客户要求定制/The size of the hanging basket can be customized according to customer requirements) |
|
臂架形式 Arm form |
八节十八边形同步伸缩臂 Eight section eighteen sided synchronous telescopic arm |
|
回转装置 Rotator |
360。连续回转/360。 continuous rotation |
|
支腿 outrigger |
前V后V型双节支腿 Front V-shaped and rear V-shaped double legged support |
|
操作 operate |
无线遥控盒操作, 下车液压手柄操作, 整车可实现全液压电动应急操 作。 wireless remote control box operation, hydraulic handle operation of the vehicle, the entire vehicle can achieve full hydraulic electric emergency operation. |
|
控制系统 controI system |
瑞雅特自研发高空车控制系统, 稳定性强/Ruiyate self-developed high-altitude vehicle control system with strong stability |
|
调平系统 IeveIing system |
组合式自动调平系统 (等容积油缸) combined Automatic Leveling System (Equal Volume cylinders) |
基本功能及安全配置lBasic functions and safety configuration
|
名称/Name |
简要说明/Brief |
|
支腿软腿检测 Leg soft leg detection |
实时检测支腿受力状态, 一旦检测到有支腿松动报警限动 Real-time detection of the leg force state, once the leg is detected loose alarm limit movement |
|
上下车自动互锁装置 upper and lower automatic vehicle interlock device |
自动实现上下车互锁, 防止上下车同时操作, 实现安全保护 Automatically interlocks the upper and lower controls to prevent simultaneous operation, ensuring safety protection for aerial work platforms. |
|
应急电动液压泵 Emergency electric-hydraulic pump |
当底盘发动机或液压主泵发生故障时, 将工作人员送回到地面 send the staff back to the ground when the chassis engine or hydraulic main pump fails. |
|
紧急停止装置 Emergency stop device |
用于紧急停止操作 For emergency stop operation |

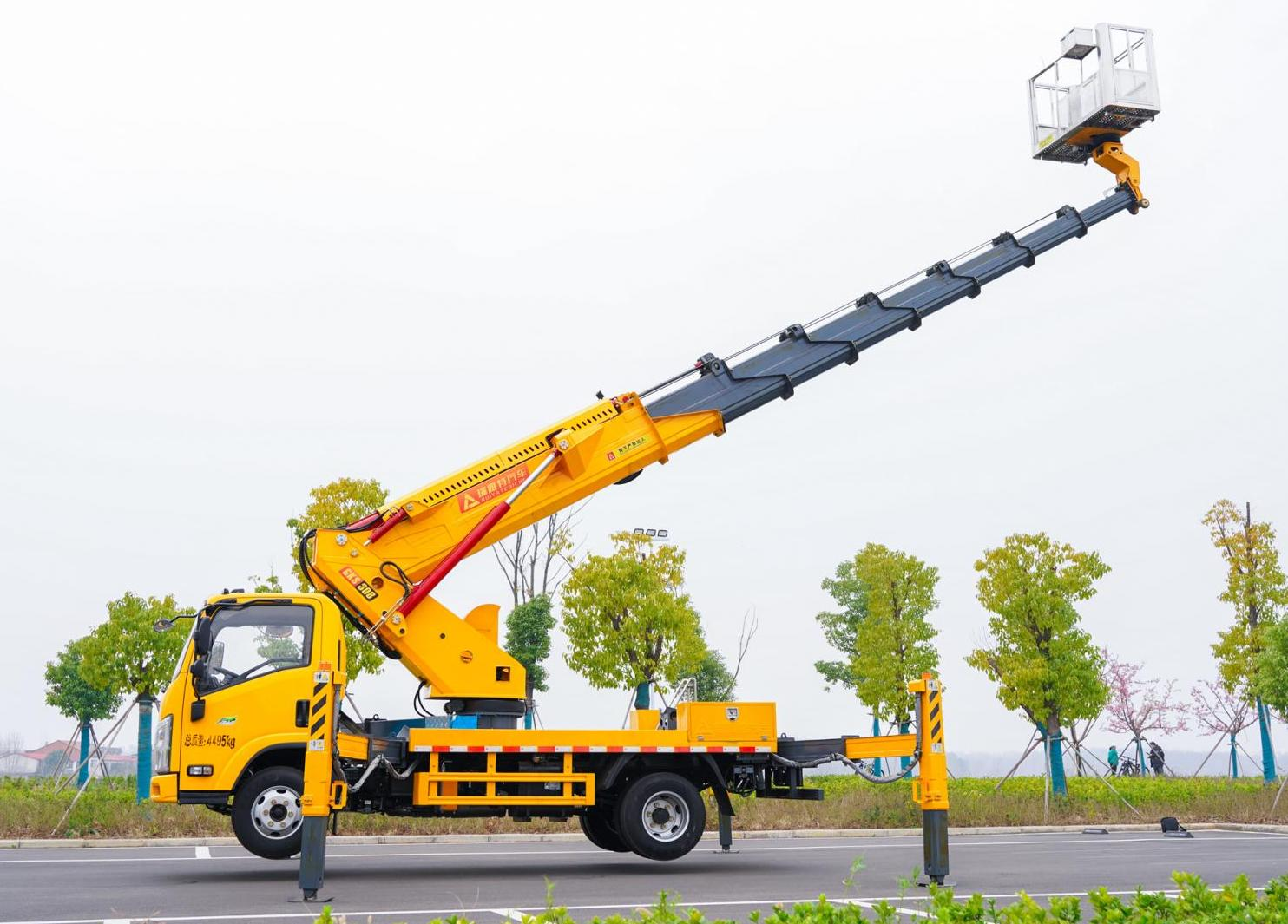

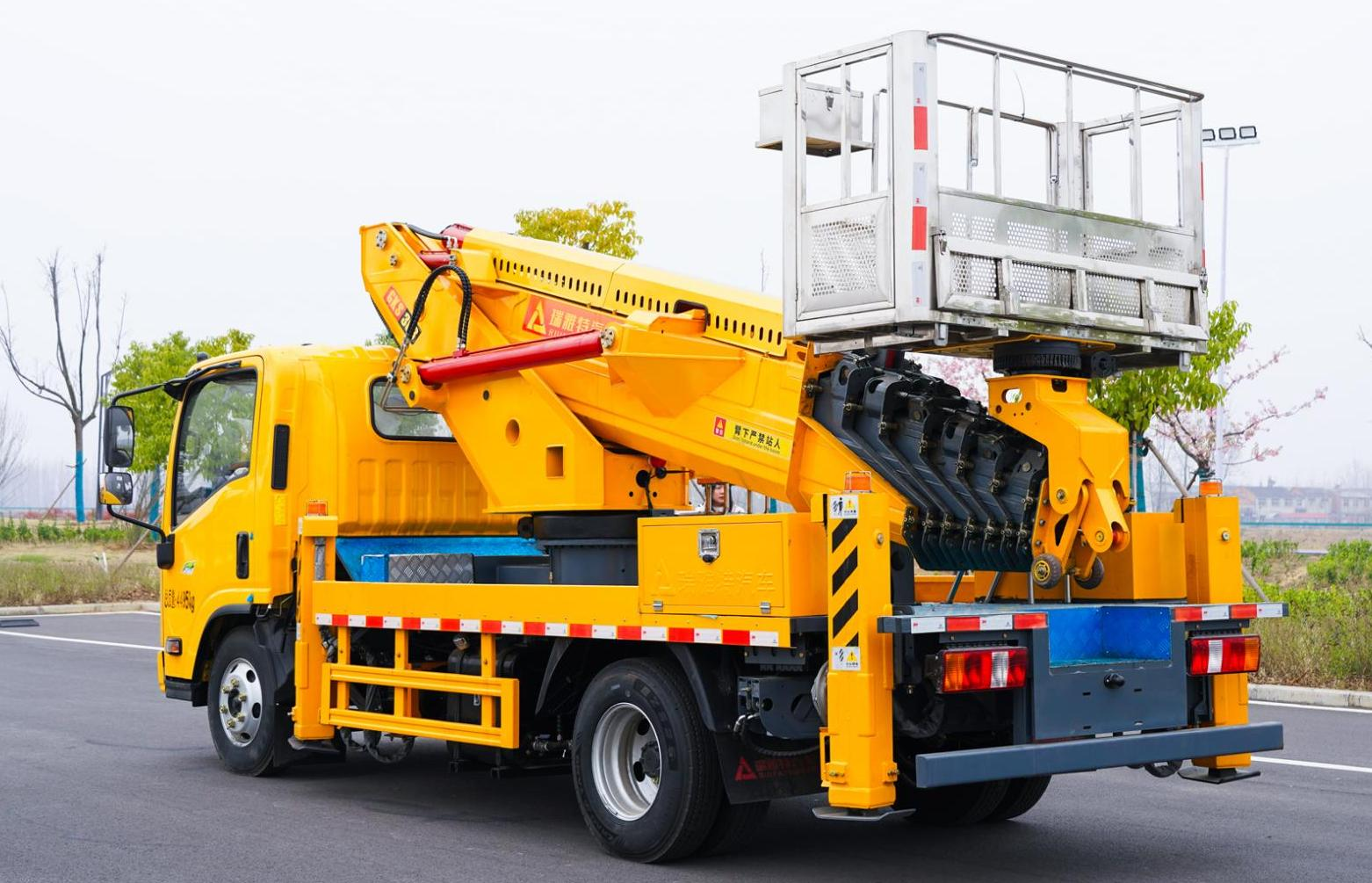

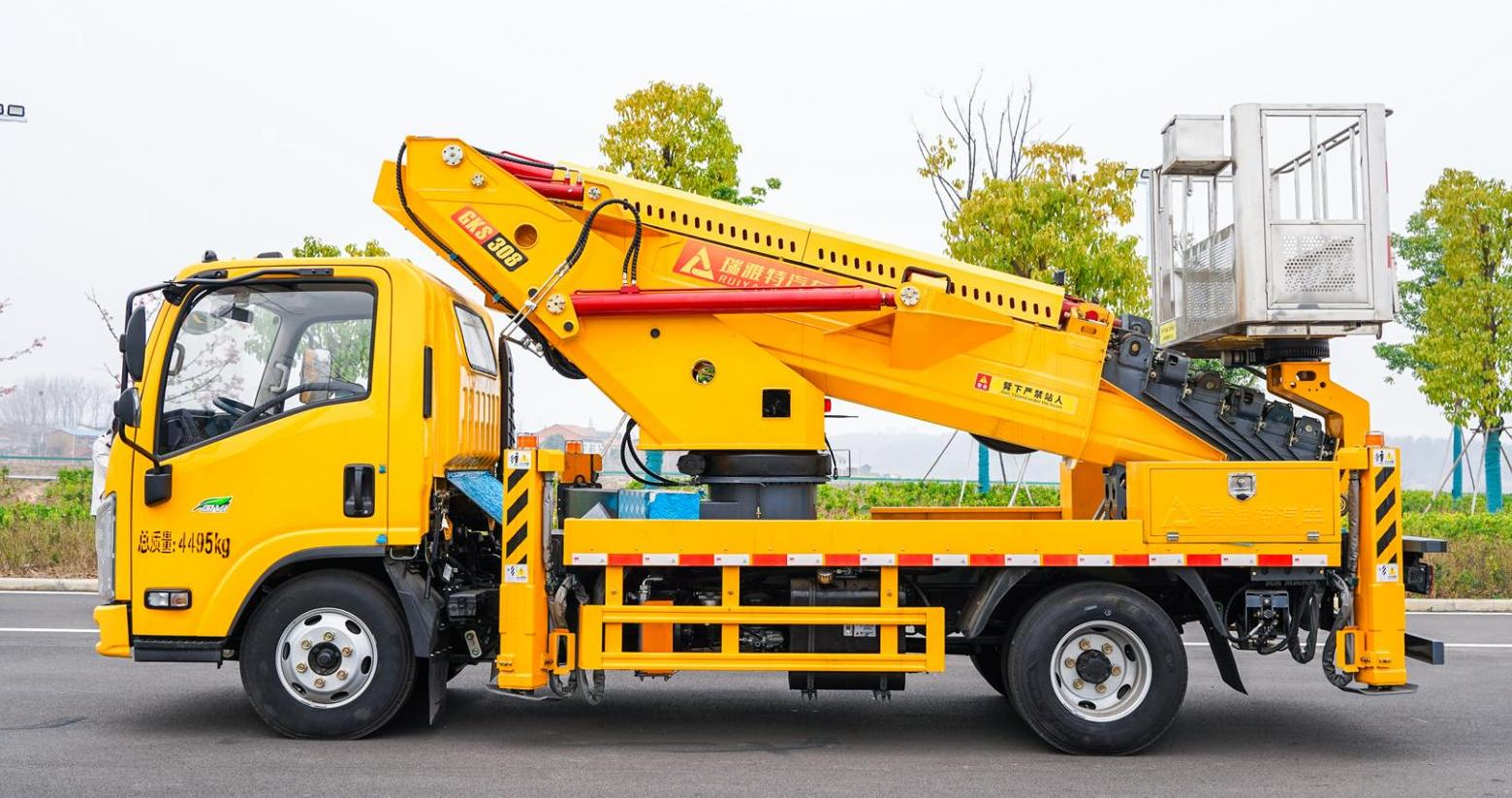

Product Details Display
