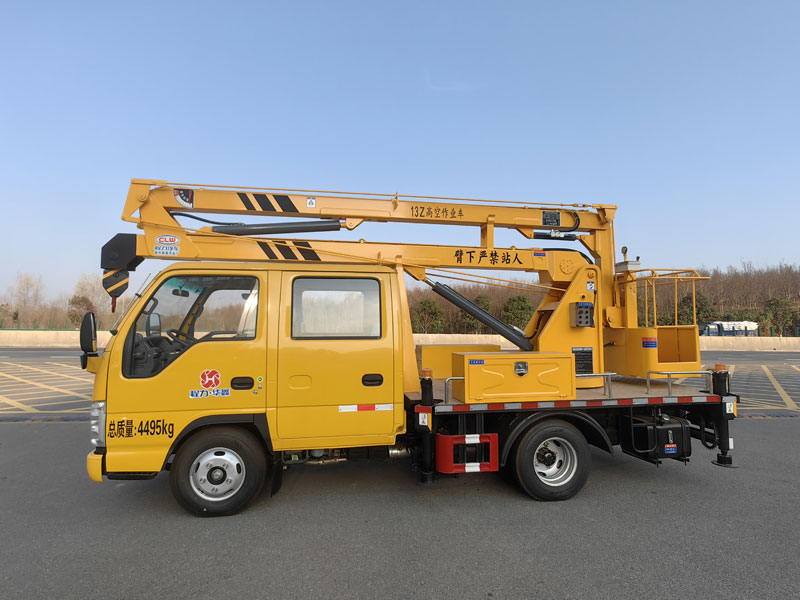

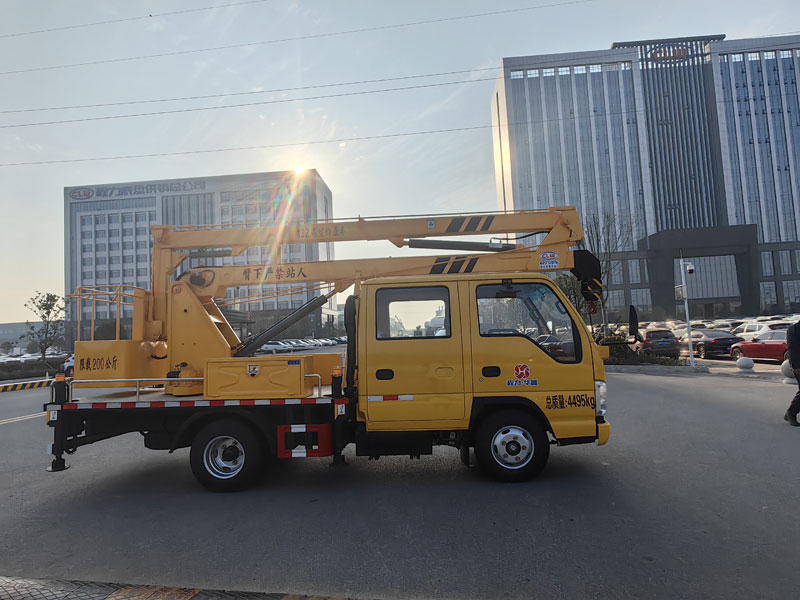

Isuzu 13-meter Aerial Work Platform Vehicle
Classification：
Keyword：
Overview Introduction
Tel：+86-123-4567-8998
Product Details Introduction
Chassis Configuration:
- Chassis Model: QL1040MFHWY
- Engine: D20TCIF15, Power: 90 kW (122 horsepower)
- Double Cab
- Wheelbase: 2800 mm
- Hydraulic Brakes
- Tire Size: 6.50R15LT
- 5-Speed Transmission
- Original Factory Air ConditioningSpecialized Performance:
- Hydraulic 360-degree full rotation, three-section folding boom, single hydraulic lifting cylinder with a bidirectional balance valve, electrically controlled operation of the lifting arm.
- Four adjustable hydraulic cylinder outriggers with bidirectional hydraulic locks (outrigger operation is manual and can be controlled individually).
- Two sets of control panels, upper and lower, with a 1-ton hook.
- Maximum working height of 13 meters, maximum working radius of 5.6 meters, maximum lifting capacity of 1 ton.
The equipment is compact, sturdy, and durable, with convenient and reliable operation. The unique full-rotation three-section boom hydraulic control system design ensures smoother operation for the workers, allowing them to be safely transported to the work position for maintenance, installation, cleaning, photography, shipbuilding, chemical, power emergency repairs, pruning, streetlight replacement, and other high-altitude emergency repair work!
1、he boom and outriggers are made of low-alloy Q345 profiles, with no welds around the edges, aesthetically pleasing, capable of withstanding high loads, and high strength.
2、 The H-shaped outriggers have good stability, can be operated simultaneously or individually, are flexible in operation, and can adapt to various working conditions.
3、The slewing mechanism is adjustable, making adjustments easy.
4、The turntable rotates 360° in both directions, utilizing an advanced worm gear reduction mechanism (with self-lubricating and self-locking functions), and post-maintenance can be easily achieved by adjusting the bolt positions.
5、The upper operation uses an integrated electro-hydraulic valve block mode, with a beautiful layout, smooth operation, and easy maintenance.
6、The lower and upper parts are interlocked, ensuring safe and reliable operation.
7、The upper operation achieves stepless speed regulation through a throttle valve.
8、The吊篮 uses an external tie-rod mechanical leveling system, which is more stable and reliable.
9、The turntable and吊篮 are equipped with start and stop switches, making operation convenient and saving fuel.
