Sinotruk HOWO Commander T5 (Wide Body) Refrigerated Truck（4.2m）
Classification：
Keyword：
Overview Introduction
Tel：+86-123-4567-8998
Product Details Introduction

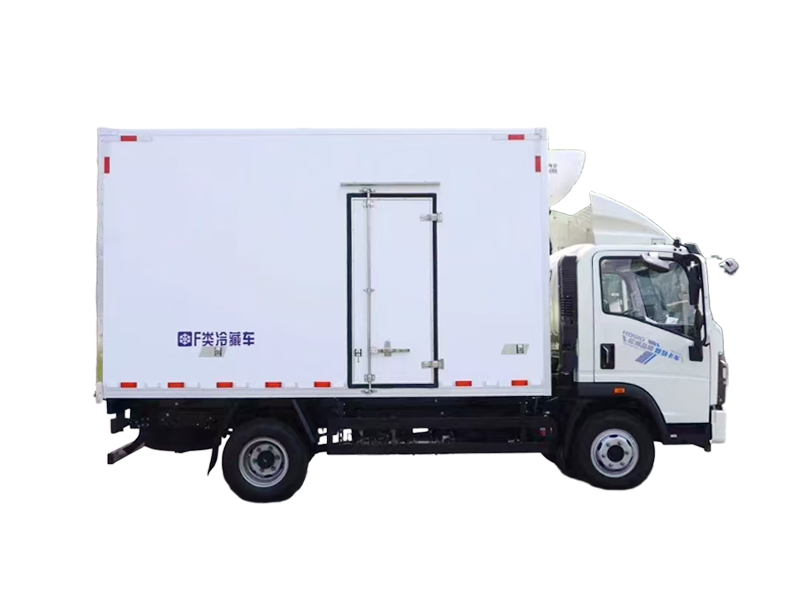

Sinotruk HOWO Commander T5 (Wide Body) Refrigerated Truck (China VI)
Vehicle Model: ZZ5047XLCH3315F1
Overall Dimensions: 5995×2470×3450 (mm)
Cargo Box Dimensions: 4000×2100(2300)×2300 (mm)
Power/HP: 118KW/160 HP, 2970 Displacement
Engine: Weichai 160 HP (WP3NQ160E61)

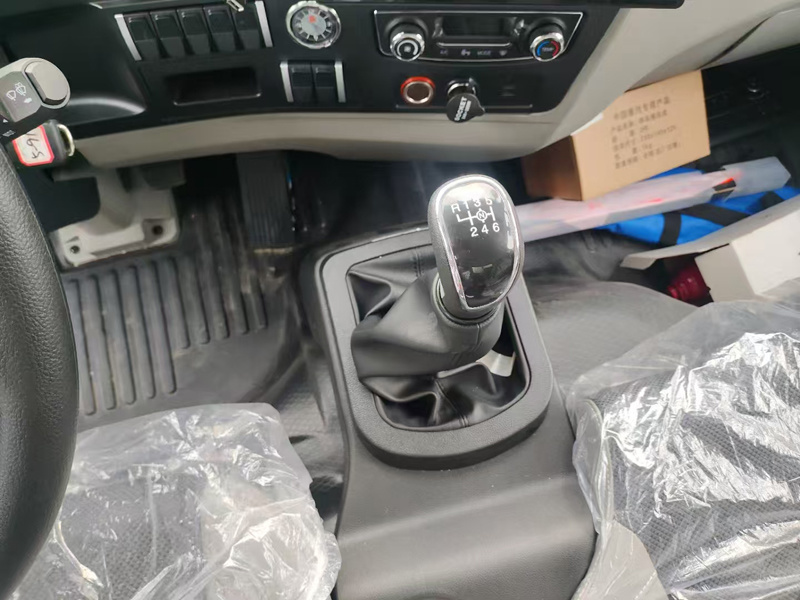

Cab Features:
2100mm wide cab, Sinotruk illuminated emblem, HOWO 8-speed gearbox with high/low range, air suspension seat, multi-adjustable central armrest, ambient lighting, electrically adjustable and heated rearview mirrors, factory-installed air conditioning, central locking, power windows, remote key, 7.50R16 tires, air horn, multifunctional steering wheel, Hande maintenance-free rear axle, gear ratio 4.33, 6-ton rear axle.
Wheelbase: 3280mm

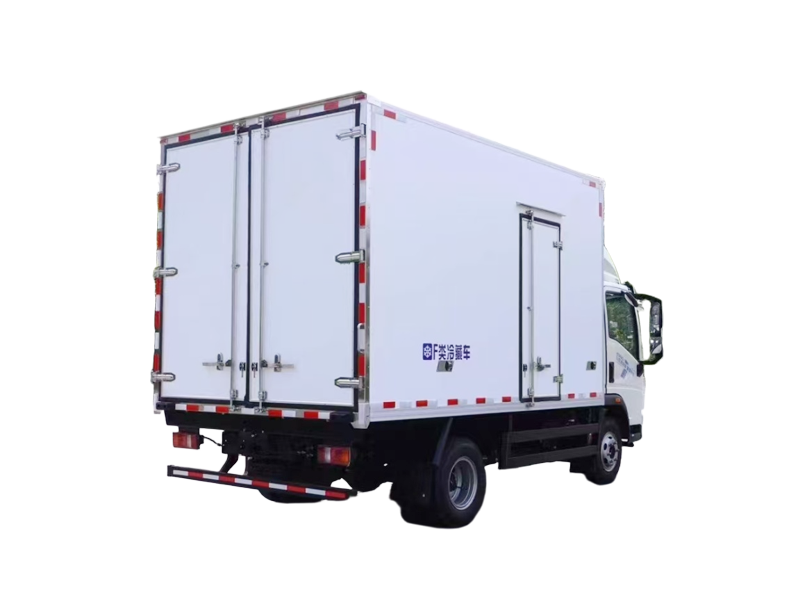

Body Configuration:
Premium refrigerated truck body with broken-bridge technology.
3.0mm thick fiberglass reinforced plastic (FRP) inner and outer walls.
8cm thick冷链专用 (cold chain专用) insulation panels.
Wood-wrapped galvanized pipe frame.
304 stainless steel door frames, locks, and hinges.
5-layer三元丙乙烯 (EPDM) rubber door seals.
Aluminum alloy corner and edge protectors.
"Z"-shaped high-strength manganese steel subframe.
Wire mesh floor mat.

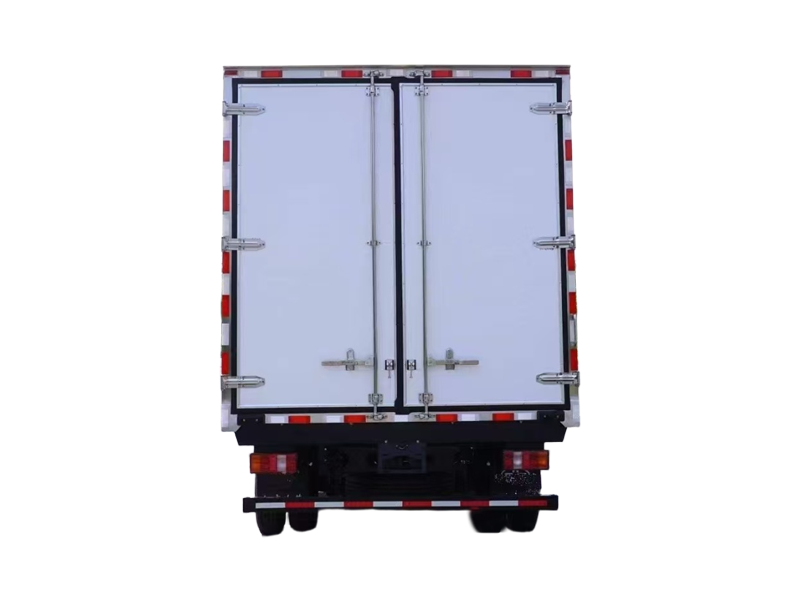

Right single side door + rear double doors.
LED ceiling light and visual corridor light.
Ventilated floor channels.
All door locks and fittings made of stainless steel.
Recessed fully welded ventilation channels.
Ladder tool box.
Other standard features.
Optional Equipment:
Refrigeration units (brands可选: Kexue, Carrier, Thermo King, etc.).
Hydraulic tail lift.
Product Details Display
Craft Display
8mm polyurethane insulation material
2.5mm FRP interior and exterior panels
Floor with tread plate aluminum
Fiberglass-reinforced compartment bonding performance
Stainless steel door lock and hasp
Automated pressing and splicing
Optional Configuration
Slaughterhouse Overhead Docking Rail
Standard Meat Hook Rail
Live Fish Transport Container System
Backup Power Equipment
Fully Stainless Steel Interior
Five-Sided Ventilation Duct with Full Stainless Steel Interior in Casing
Five-sided ventilation duct/channel in cabinet
Temperature and Humidity Recorder
OUR ADVANTAGES
Focusing on quality, win-win cooperation, providing professional car modification services for enterprises and individuals, precision production, and worry free after-sales service
Factory Show
● More than 70 professional workshops for 800 types of special purpose trucks ;
● More than 12,600 staffs including 800 D persons and 5000 technical workers ;
● Top 4 in Hubei Private Manufacturing Companies ;
● Top 500 of China private Companies ;
Production Process
● Truck Chassis ordering ;
● Superstructure frame welding and installation ;
● Main function equipment installation ;
● Testing before painting ;
● Customized logo design and painting ;
Our Advantage
● Long term cooperation with DONGFENG, SINOTRUK, FAW, FOTON, SHACMAN, JAC, ISUZU and so on ;
● Available for truck spare parts at factory price ;
● Available for overseas after-sale service ;
Complete After-Sale Service
● Pre-sales Service: Communicate with customers, analyze their needs ;
● Sales Service: Provide professional technical solutions, recommend the right models accordingly ;
Production Factory Display
Chengli Special Purpose Vehicle Company currently has over 3000 sets of specialized vehicle production equipment and over 600 sets of testing equipment; Each specialized vehicle category has strict assembly line production, forming a complete specialized vehicle production system; Some of the machining centers and production lines are at a leading level both domestically and internationally.
Qualification Certificate
Passed: ISO9001-2008 quality management, OHSAS18001 occupational health and safety management system certification, ISO 14001 environmental management, 3C mandatory certification, GJB9001B-2009 national military standard certification and confidentiality certification (national level three), automotive energy conservation and environmental protection certification, automotive exemption certification, American mechanical engineer ASME certification, EU agreement ADR certification.
OUR SERVICES
Dear customer,
Thanks for purchasing the product of ChengLi Special Automobile Co., Ltd!
We follow the quality policy as below: product leadership is our eternal target, customer satisfaction is our relentless pursuit, quality service is our best commitment, so we make our promises as follow:
1.Free maintenance and time
1)Tracking service time: lifelong
2)From the date of receiving, in normal use within 30000km or within one year, we will repair for free, but easy wear parts and electrical parts are not included. After one year, we only charge the maintenance cost.
2. After warranty time
1)Method: according to customer's requirement, the parts will send by our after sale department or send directly by local chassis service station
2) Parts only charge cost, no other charges
3. Chassis problem, please find the nearest chassis service station for repair, the detailed address please find the maintenance manual book or call our company after sale service number.
ChengLi Automobile Co., Ltd tries our best to service you.
E-mail:clwspecauto@gmail.com
WhatsApp:13872880802
FAQ
What Is The Package?
We offer wooden case, steel frame packaging, or according to customer's demand.
Can I Visit Your Company?
Welcome, look forward to your arrival and we will pick up you from the airport and lead you to visit our factory .
Are You Trading Company Or Manufacturing Factory?
We are both trading company and manufacturer. We have our own factory for more than ten years, and we established a new trading company for better service of overseas customers. Welcome to send your inquiry!
How About The Delivery Time?
Generally, it will take 40 to 60 days after receiving your advanced payment. The specific delivery time depends on the items and the quantity of your order.
How Can You Guarantee The Product Quality?
We have the quality control system ISO9001:2008, and it's been followed strictly. We also have the professional QC team to guarantee the quality.
I'D Like To Know Your Payment Terms.
T/T 40% as deposit, and 60% before delivery. We'll show you the photos of the products and packages before you pay the balance.
How About Shipping?
Big size trucks always shipping by RORO or Bulk ship, small type can shipping by container. Please contact us to get a shipping quotation.
Could Your Company Provide Customized Products?
Of course, we can provide the customized-designing product meeting with your demand.
Do You Have Any One In Stock?
In general, we don't have stock. Our products are all manufactured according to customers' requirements. So our products are all different and special.
Can You Give Us The Technical Drawing And Data?
Our products are all custom made. Usually you need to provide us with the drawings. And if you do not have it, some important data is also necessary. We can help you design it after we signed the contract and confidentiality agreement.
Do You Provide After-Sales Service?
Yes, we do. This product is guaranteed up to one year from purchase unless man-made damage. If there is anything wrong with product itself quality problem, we will change or repair it at our charge. If not, we will provide after-sales service at your charge.
