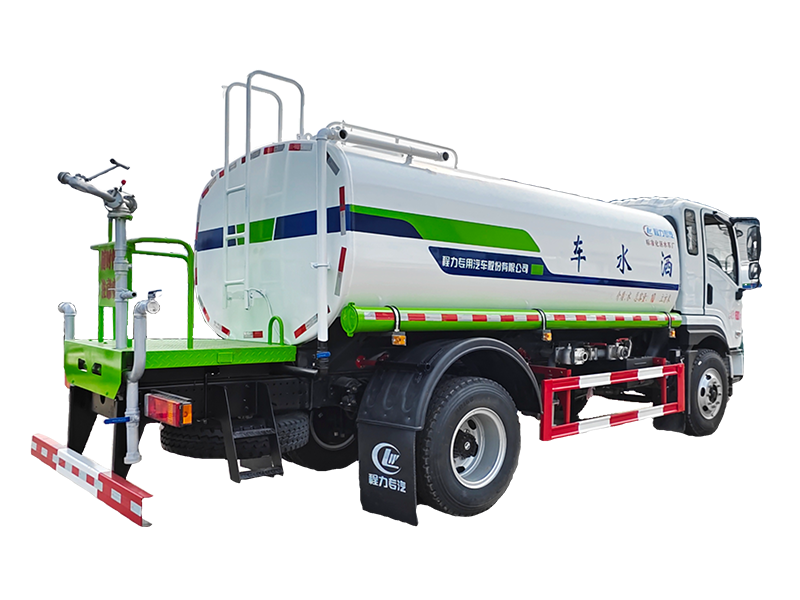

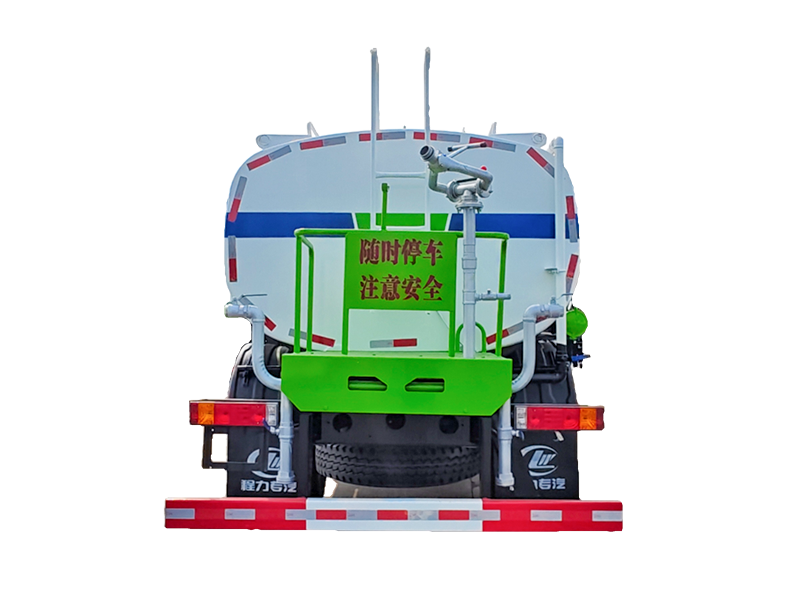

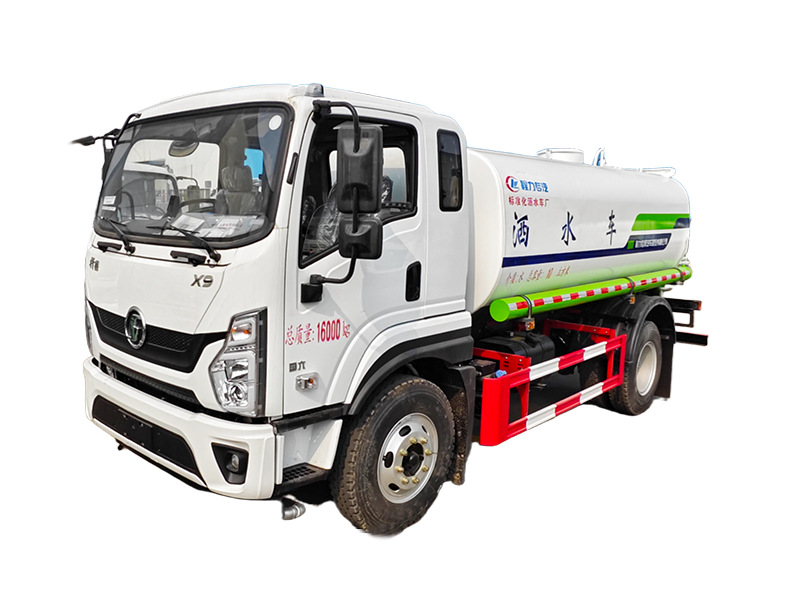

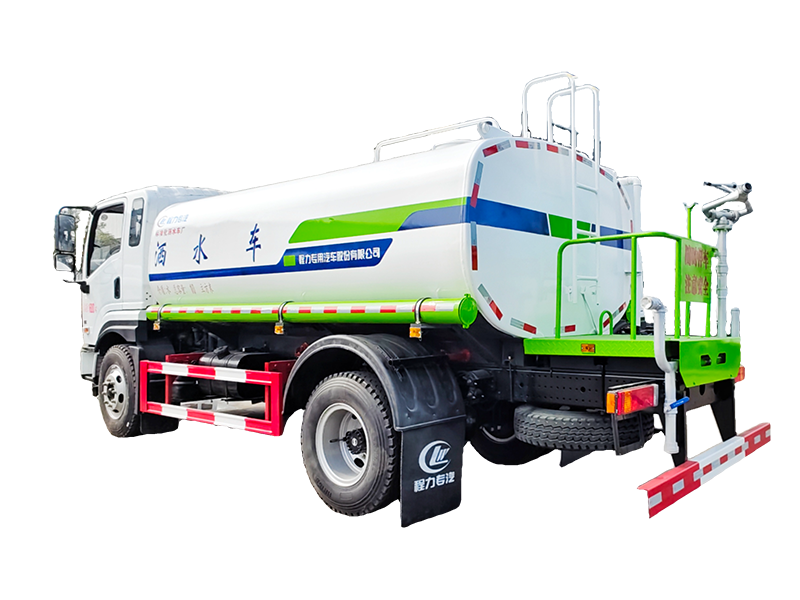

Shacman Xunde X9 12-Cubic-Meter Water Truck
Classification：
Keyword：
Overview Introduction
Tel：+86-123-4567-8998
Product Details Introduction
Shacman Xunde X9 12-Cubic-Meter Water Truck
Chassis Configuration
Wheelbase: 3950mm
Engine Options: Yuchai 170 HP / Yunnei 177 HP
Transmission: Fast 8-speed manual gearbox (with PTO)
Tires: 9.00R20/16PR
Fuel Tank: 130L steel tank
Cab: X9 extended cab / 2120mm wide cab
Additional Features:
Power windows & central locking
Clutch booster
Dual 100Ah maintenance-free batteries
Reinforced double-layer frame (861×232mm, 6+4 construction)
Front axle: 3.2T capacity / Rear axle: 8T capacity
Superstructure Configuration
Water Tank: 12m³ capacity
Material: Q235 carbon steel
Baffle thickness: 3mm
Tank body thickness: 4mm
Head plate thickness: 5mm
Valves & Piping:
Large-diameter full-bore ball valves
Aluminum alloy tees
Reinforced main pipeline (76mm)
Die-Cast Aluminum Fittings:
One-piece die-cast aluminum alloy elbows, tees, pump outlet cross fittings, and pump inlet straight fittings (no welds, leak-proof design).
Standardized modular design for easy maintenance/replacement.
Lightweight, durable, and aesthetically refined.
Other Components:
Aluminum alloy rear sprinkler
Stainless steel ball valve high-pressure water cannon
Anti-Slip Work Platform:
2mm perforated steel plate (optimized drainage, non-slip surface).
Press-formed structure for enhanced strength and lightweight performance.
Specialized Watering Functions
Spray Systems:
Front flush / Rear spray / Side spray
Rear work platform with high-pressure绿化 cannon (adjustable spray patterns: direct jet, heavy rain, medium rain, drizzle; max range: 30m).
High-Performance Pump:
Firefighting inlet connection
Self-priming capability (suction lift ≥6m)
Built-in filter
Performance Metrics:
Spray width: ≥16m
Jet range: ≥30m
Mist coverage: ≥15m
Product Details Display
Craft Display
Water cannon 30 meters
Side spray 10 meters
After 15 meters
Hedge 24 meters
Large diameter ball valve
Pumping and drainage
High power water pump
Tank anti-corrosion
Optional Configuration
Sprayer 40-120 meters
Electric water cannon 30 meters
Cab control system
LED Arrow Diverter Light
OUR ADVANTAGES
Focusing on quality, win-win cooperation, providing professional car modification services for enterprises and individuals, precision production, and worry free after-sales service
Factory Show
● More than 70 professional workshops for 800 types of special purpose trucks ;
● More than 12,600 staffs including 800 D persons and 5000 technical workers ;
● Top 4 in Hubei Private Manufacturing Companies ;
● Top 500 of China private Companies ;
Production Process
● Truck Chassis ordering ;
● Superstructure frame welding and installation ;
● Main function equipment installation ;
● Testing before painting ;
● Customized logo design and painting ;
Our Advantage
● Long term cooperation with DONGFENG, SINOTRUK, FAW, FOTON, SHACMAN, JAC, ISUZU and so on ;
● Available for truck spare parts at factory price ;
● Available for overseas after-sale service ;
Complete After-Sale Service
● Pre-sales Service: Communicate with customers, analyze their needs ;
● Sales Service: Provide professional technical solutions, recommend the right models accordingly ;
Production Factory Display
Chengli Special Purpose Vehicle Company currently has over 3000 sets of specialized vehicle production equipment and over 600 sets of testing equipment; Each specialized vehicle category has strict assembly line production, forming a complete specialized vehicle production system; Some of the machining centers and production lines are at a leading level both domestically and internationally.
Qualification Certificate
Passed: ISO9001-2008 quality management, OHSAS18001 occupational health and safety management system certification, ISO 14001 environmental management, 3C mandatory certification, GJB9001B-2009 national military standard certification and confidentiality certification (national level three), automotive energy conservation and environmental protection certification, automotive exemption certification, American mechanical engineer ASME certification, EU agreement ADR certification.
OUR SERVICES
Dear customer,
Thanks for purchasing the product of ChengLi Special Automobile Co., Ltd!
We follow the quality policy as below: product leadership is our eternal target, customer satisfaction is our relentless pursuit, quality service is our best commitment, so we make our promises as follow:
1.Free maintenance and time
1)Tracking service time: lifelong
2)From the date of receiving, in normal use within 30000km or within one year, we will repair for free, but easy wear parts and electrical parts are not included. After one year, we only charge the maintenance cost.
2. After warranty time
1)Method: according to customer's requirement, the parts will send by our after sale department or send directly by local chassis service station
2) Parts only charge cost, no other charges
3. Chassis problem, please find the nearest chassis service station for repair, the detailed address please find the maintenance manual book or call our company after sale service number.
ChengLi Automobile Co., Ltd tries our best to service you.
E-mail:clwspecauto@gmail.com
WhatsApp:13872880802
FAQ
What Is The Package?
We offer wooden case, steel frame packaging, or according to customer's demand.
Can I Visit Your Company?
Welcome, look forward to your arrival and we will pick up you from the airport and lead you to visit our factory .
Are You Trading Company Or Manufacturing Factory?
We are both trading company and manufacturer. We have our own factory for more than ten years, and we established a new trading company for better service of overseas customers. Welcome to send your inquiry!
How About The Delivery Time?
Generally, it will take 40 to 60 days after receiving your advanced payment. The specific delivery time depends on the items and the quantity of your order.
How Can You Guarantee The Product Quality?
We have the quality control system ISO9001:2008, and it's been followed strictly. We also have the professional QC team to guarantee the quality.
I'D Like To Know Your Payment Terms.
T/T 40% as deposit, and 60% before delivery. We'll show you the photos of the products and packages before you pay the balance.
How About Shipping?
Big size trucks always shipping by RORO or Bulk ship, small type can shipping by container. Please contact us to get a shipping quotation.
Could Your Company Provide Customized Products?
Of course, we can provide the customized-designing product meeting with your demand.
Do You Have Any One In Stock?
In general, we don't have stock. Our products are all manufactured according to customers' requirements. So our products are all different and special.
Can You Give Us The Technical Drawing And Data?
Our products are all custom made. Usually you need to provide us with the drawings. And if you do not have it, some important data is also necessary. We can help you design it after we signed the contract and confidentiality agreement.
Do You Provide After-Sales Service?
Yes, we do. This product is guaranteed up to one year from purchase unless man-made damage. If there is anything wrong with product itself quality problem, we will change or repair it at our charge. If not, we will provide after-sales service at your charge.
