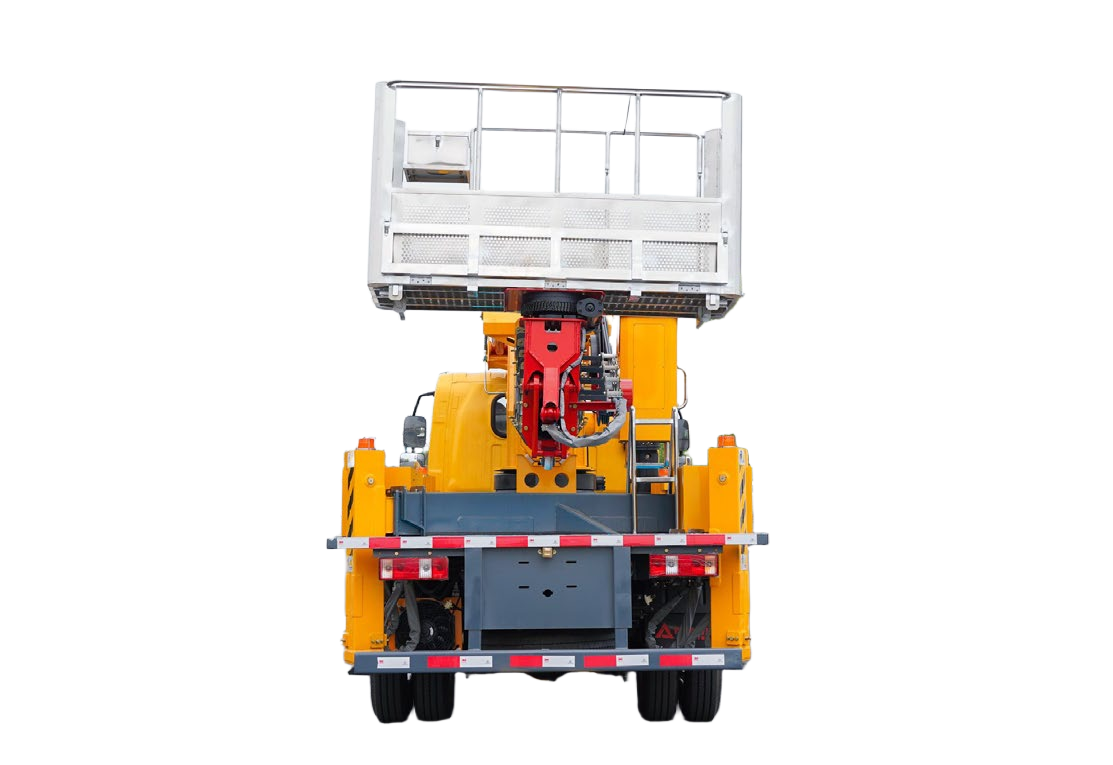

Jiefang 31m aerial work vehicle
Classification：
Keyword：
Overview Introduction

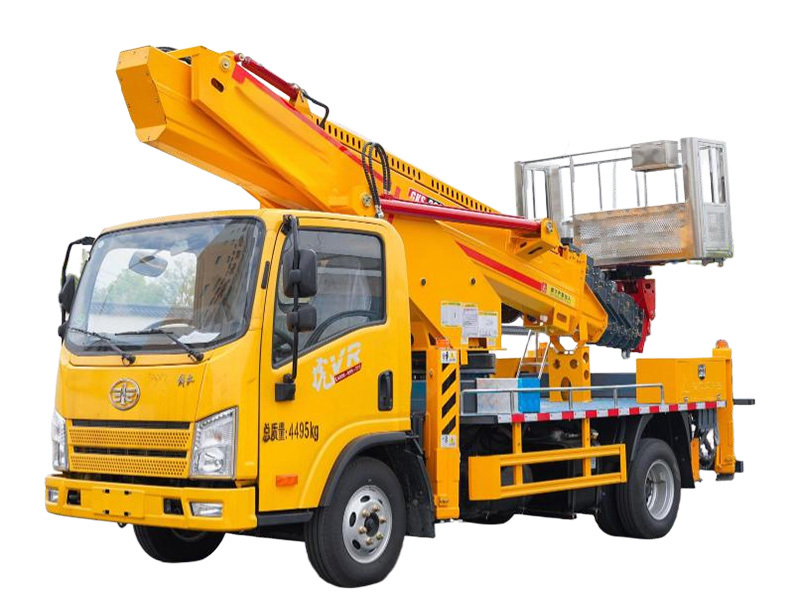

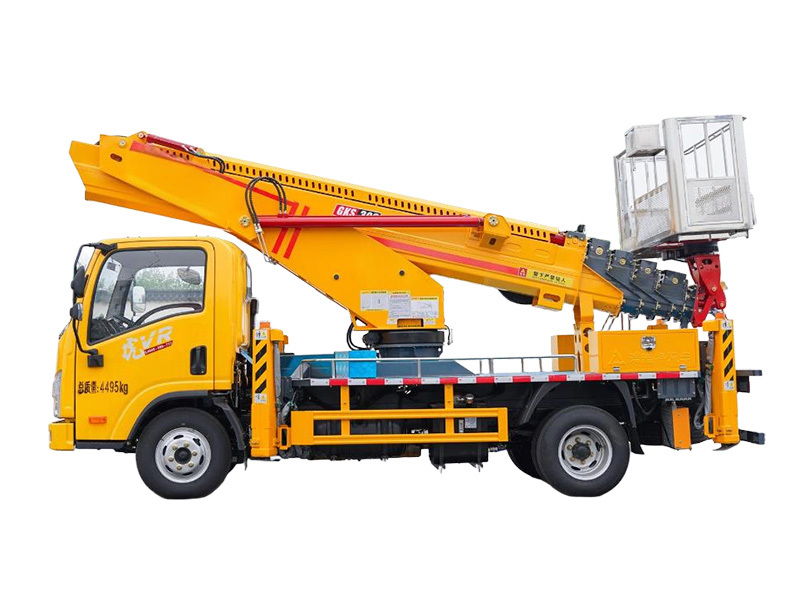

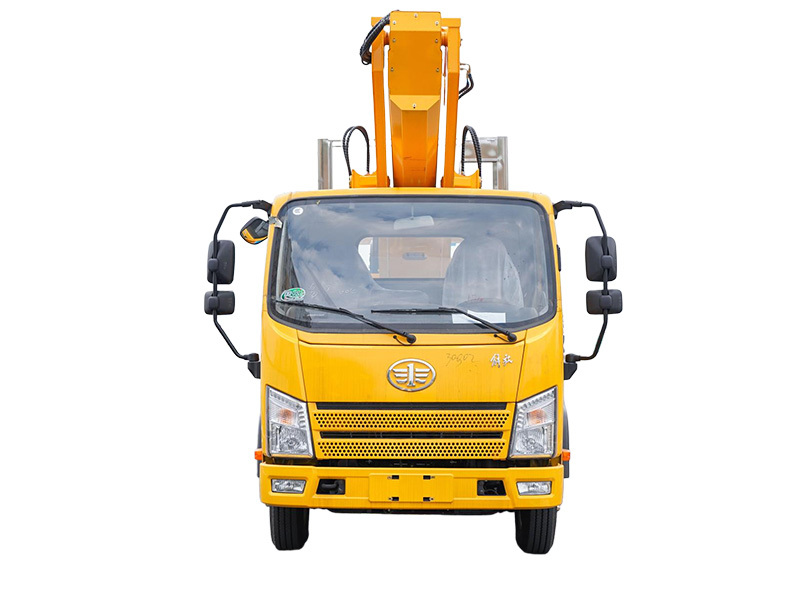

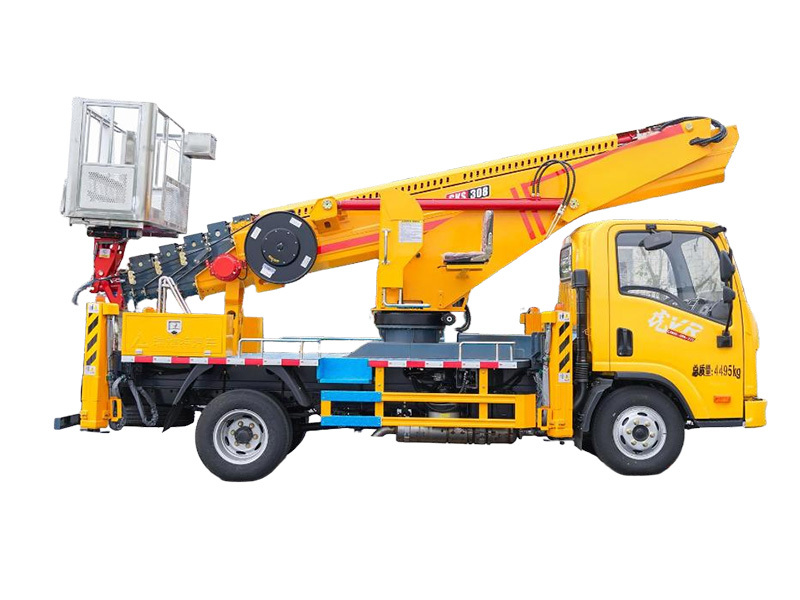

Jiefang 31m aerial work vehicle
Tel：+86-123-4567-8998
Product Details Introduction
Main technical parameters
|
Main technical parameters of aerial work vehicle |
||||
|
class |
project |
unit |
data |
|
|
Size parameters |
cabinet minister |
mm |
5995 |
|
|
total width |
mm |
2080 |
||
|
overall height |
mm |
3200 |
||
|
mass parameter |
Number of passengers (including driver) |
human being |
2/3 |
|
|
gross mass |
kg |
4495 |
||
|
Main performance parameters |
Rated load of the work platform |
kg |
200 |
|
|
Maximum operating height |
m |
30.8 |
||
|
Maximum working height is the working amplitude |
m |
4 |
||
|
Maximum operating range |
m |
23 |
||
|
Maximum operating height at maximum operating amplitude |
m |
19 |
||
|
Leg span |
broadwise |
mm |
5400 |
|
|
direction |
mm |
5100 |
||
|
The work platform rotates |
o |
360 |
||
|
Boom swing time |
s |
70≤t≤90 |
||
|
Climbing arm extension time |
s |
80≤t≤100 |
||
|
Lift arm rotation speed |
s/r |
130≤t≤150 |
||
|
Time to retract and extend legs |
s |
60≤t≤70 |
||
|
Driving parameters |
front overhang |
mm |
1150 |
|
|
rear overhang |
mm |
1545 |
||
|
protract |
mm |
/ |
||
|
Stretch back |
mm |
/ |
||
|
wheel base |
mm |
3300 |
||
|
Maximum speed |
km/h |
110 |
||
|
Minimum ground clearance |
mm |
370 |
||
|
approach angle |
o |
13 |
||
|
departure angle |
o |
15 |
||
Configuration description
Main configuration components
|
Main configuration of aerial work vehicle |
|
|
Component name |
Brief description |
|
batholith |
Liberate CA1043P40K50L2BE6A84 Class II chassis |
|
engine |
Sichai 135 horsepower engine, national VI emission standard |
|
Cabin configuration |
The VR single row cab is equipped with a five-speed transmission and a 3-ton welding bridge (speed ratio 4.875, wheelbase 1475),7.00R16 8 levels (semi-steel wire), 760*150*60*4, 10L urea tank, domestic ABS, 70L plastic fuel tank, leaf spring 3/7+3, air conditioning + electric doors and Windows + central lock, high-altitude working vehicle chassis, NFH |
|
Fencing and walkway |
Stainless steel fence, aluminum alloy anti-slip walkway plate |
|
Power take-off system |
Pneumatic power take-off |
|
foot platform |
1600x700x1000mm (the size of the basket can be customized according to customer requirements) |
|
Arm type |
Six sections of 14-sided synchronous telescopic arms |
|
rotator |
360. Continuous rotation |
|
landing leg |
The front V and rear V type double leg is individually adjustable and can be extended synchronously |
|

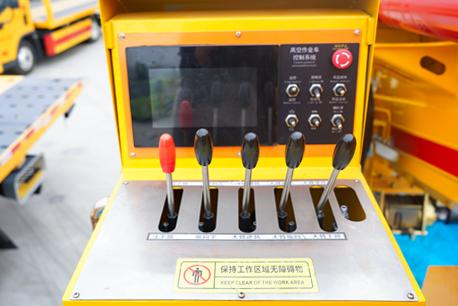

operate |
The rotary platform is fixed for operation, the wireless remote control box is operated, and the hydraulic handle is operated when the vehicle is off. An electric emergency pump is provided, and the whole vehicle can realize full hydraulic electric emergency operation. |
|
navar |
The high altitude vehicle control system developed by Ryaet is highly stable |
|
Leveling system |
Automatic hydraulic leveling |
|
Tension chain force balance |
The rope is stretched to set the balance mechanism to ensure that the force on the left and right steel ropes is balanced |
Basic functions and safety configuration
|
Basic functional safety configuration of aerial work vehicle: The working vehicle can realize the platform load of 200kg, the maximum working height of 30.8m, the maximum working amplitude of 23m, and the boom amplitude Angle range of-18 ~80. The working platform hydraulic leveling is automatic. |
|
|
name |
Brief description |
|
Leg support soft leg test |
The force state of the support leg is detected in real time. Once the alarm limit is detected, the support leg is moved |
|
Automatic interlock device for getting on and off the vehicle |
Automatic lock-in and lock-out of boarding and alighting to prevent simultaneous operation of boarding and alighting and realize safety protection |
|
Emergency electric hydraulic pump |
When the chassis engine or hydraulic master pump fails, the crew is sent back to the ground |
|
Emergency stop device |
Three emergency stop devices to ensure that all operations are stopped in case of emergency |
|
Automatic limiting |
Ensure that the vehicle operates within a safe operating range |
|
Vehicle level status tester |
It can detect the lateral and longitudinal inclination state of the vehicle |
|
Engine ignites and shuts down |
The turntable and remote control box can be used to start and stop the engine |
|
composite move |
Combined movements such as platform rotation, turntable rotation, boom amplitude and extension can be performed simultaneously |
|
Break chain protection device |
The rope is stretched to set the balance mechanism to ensure that the force on the left and right steel cables is balanced |
|
Electrical emergency operation function |
In case of emergency, the vehicle action is restored to ensure that personnel can be safely sent back to the ground in dangerous working conditions |
Introduction of main features
The aerial work vehicle is a combination of many functions, parameters and performance lead domestic products of the same level. Its main features are:
1. The classic continuation of blue plate cars
The aerial work vehicle is a blue plate 30.8 meters, which continues the classic of Ryaat blue plate 23 meters, 25 meters and 27 meters, and is another classic blue plate product built on this basis.
The vehicle has good driving performance, the length is less than 6 meters, and it is a light telescopic arm product that meets the requirements of blue plate.

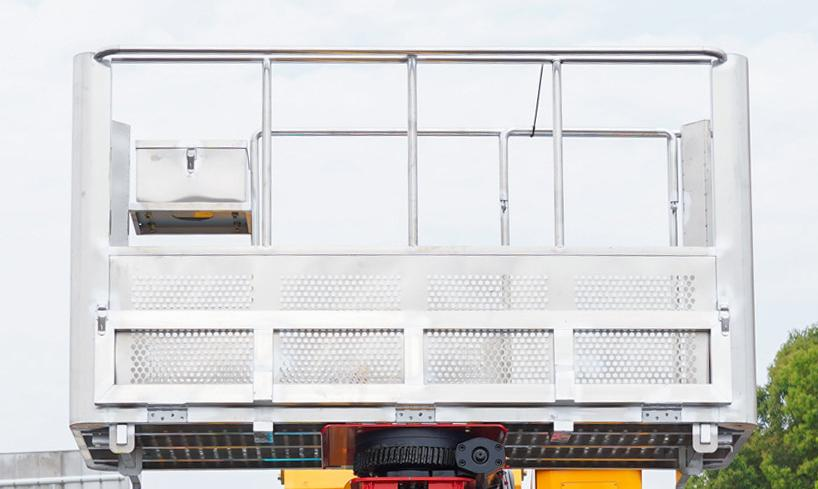

The car is equipped with a 1.6 meter stainless steel working platform (a 2 meter folding basket can be selected according to customer requirements), which has a large space and good corrosion resistance, making it convenient for customers to use.
The maximum working height of the vehicle can reach 30.8 meters, and the maximum working amplitude can reach 23 meters. The vehicle adopts a zoned operation mode to meet different operational requirements of customers and ensure the safety of customers' use.
2. Simple and fashionable appearance, high-end and grand
The product design is mainly guided by light and fast visual orientation. The new boom style adopts the most advanced design concept and manufacturing process in Europe for the arm section. The boom and turntable adopt the external folding polygonal structure, the boom adopts high strength steel, with high safety coefficient, good stiffness and strong stability.
The open design of the car allows for easy maintenance of the chassis. The on-board telescopic system (wire rope system) and special pipeline conveying system are all built-in, which not only makes the appearance of the vehicle neat and beautiful, but also effectively reduces the long-term exposure to sun and rain for the above-mentioned mechanisms, reduces accidental scratches during work, and extends the service life of the vehicle.
The upper and lower structure of the vehicle is full in shape, with a harmonious proportion. The color is mainly engineering yellow, clean and generous. The small stainless steel fence and side protection are used for getting off the vehicle, combined with aluminum alloy platform, making the whole vehicle more high-end, fashionable and atmospheric.
3. Good working performance and large operating area
This vehicle adopts six sections of 14-sided telescopic arms for synchronous extension and contraction. The action is simple, easy to operate, and the action is fast and the operation range is large; the working platform is placed at the back, so that personnel can easily go up and down.
4. Unique and novel boom structure
Compared with other domestic manufacturers of the same class blue plate, we have the following unique features:

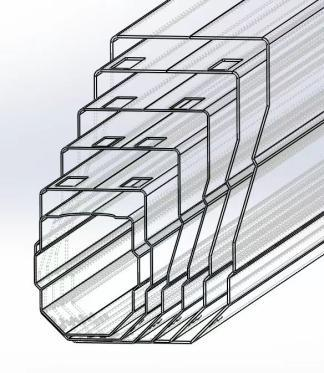

(1) The arm frame adopts the original 14-sided bending design and processing technology, especially the bending of the lower channel steel of each section of the arm. After sufficient theoretical analysis and 100,000 fatigue tests, different bending numbers of different arm frames ensure that the deformation of the arm frame is less, the strength is high, the motion stability is good and the safety is high.
(2) The arm frame is made of high strength steel plate to effectively ensure the safety of operation.
5. Reliability and security

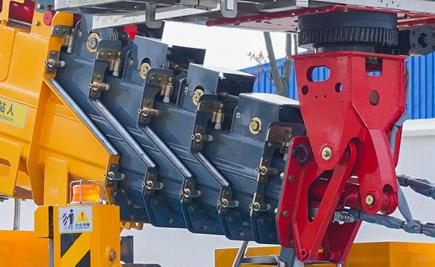

(1) The drag chain used in the whole vehicle dedicated pipeline conveying system is imported brand, with high reliability.
(2) During the product development process, methods such as structural safety verification, stability analysis, and reliability testing are employed to ensure that the product's performance is stable and reliable within the operational range. Before leaving the factory, in addition to overload testing, dynamic loads at 1.25 times the rated load and static loads at 1.5 times the rated load are also conducted. All critical structural components undergo tens of thousands of fatigue cycles and destructive tests to ensure the safety and reliability of the equipment.
(3) The safety device is complete, including the hydraulic cylinder stopback device, leg stopback device, upper and lower vehicle interlock device, emergency stop device, soft leg protection device, extreme deceleration, emergency manual operation and other safety protection system to ensure the safety of high-altitude work.
(4) The car is fully equipped, including high-grade mudguard, off-car operation box, etc.
(5) All key structural parts are made of low alloy high strength steel welding, with high strength and light weight. After a variety of tests, it is fully verified to ensure the precise matching of structure, electrical and hydraulic components. All main control components and key transmission parts are made of internationally renowned brands, with stable quality and high reliability.

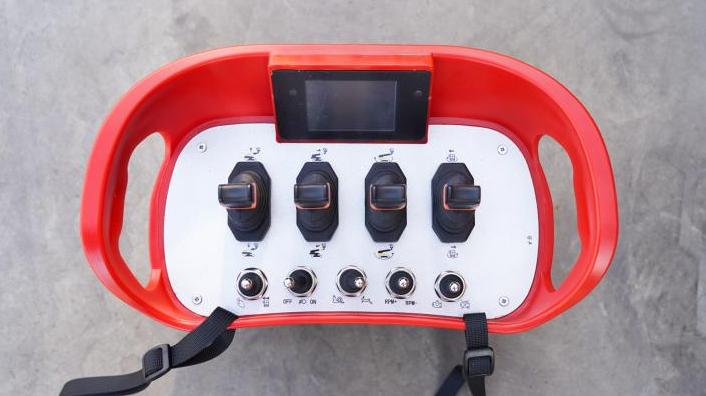

6. Wireless remote control, comfortable and convenient for one-handed operation
Wireless remote control technology ensures that the operator can operate flexibly and conveniently in a narrow working environment, eliminate blind spots, and have a better working vision. In addition, the operator can avoid enduring cold and hot weather, and can complete the operation in an appropriate place; it can be completed with one hand
Complete the active operation.
7. Fast action and can achieve compound action
There are two options for the speed of leg retraction and extension. When the speed is high, the total time of retraction and extension is less than 60 seconds. The boom can be extended and reduced quickly, and the rotary table rotation, boom extension, boom extension and platform rotation can be realized synchronously, which improves the operation efficiency
8. Smooth work
(1) Start and stop with buffer control to reduce the impact of action;
(2) The leg is controlled by the proportional directional valve to control the flow rate;
(3) The balance valve is used to control the start and stop of each action of the arm frame to ensure the stability of the start and stop actions;
(4) Load sensitive proportional valve is adopted to match the flow rate and speed reasonably;
(5) The hinge point is arranged reasonably, the boom amplitude has no sudden pressure change, the pressure changes uniformly, and the action is stable.
9. Good ergonomics to improve safety and comfort

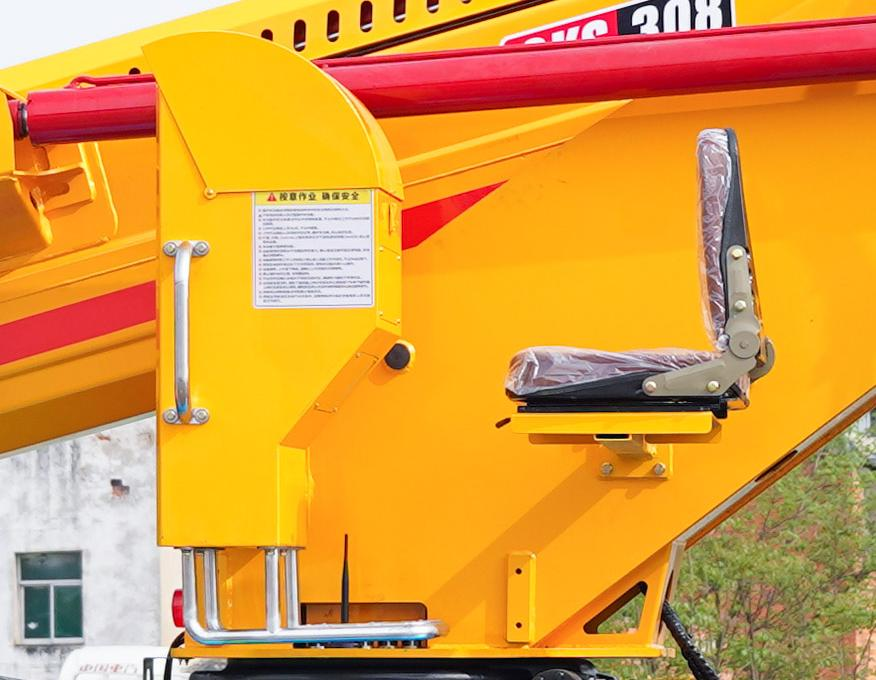

(1) Seats and foot pedals are set up at the rotary table operation place to rotate with the rotary table, so that the staff can operate more comfortably and reduce the fatigue degree of the staff working for a long time.
(2) The color matching of the control box interface of the turntable is in line with human visual sense, which reduces visual fatigue and improves safety and comfort. The operation interface combines graphics and text, which is simple and easy to understand, reduces misoperation, and improves safety and comfort.

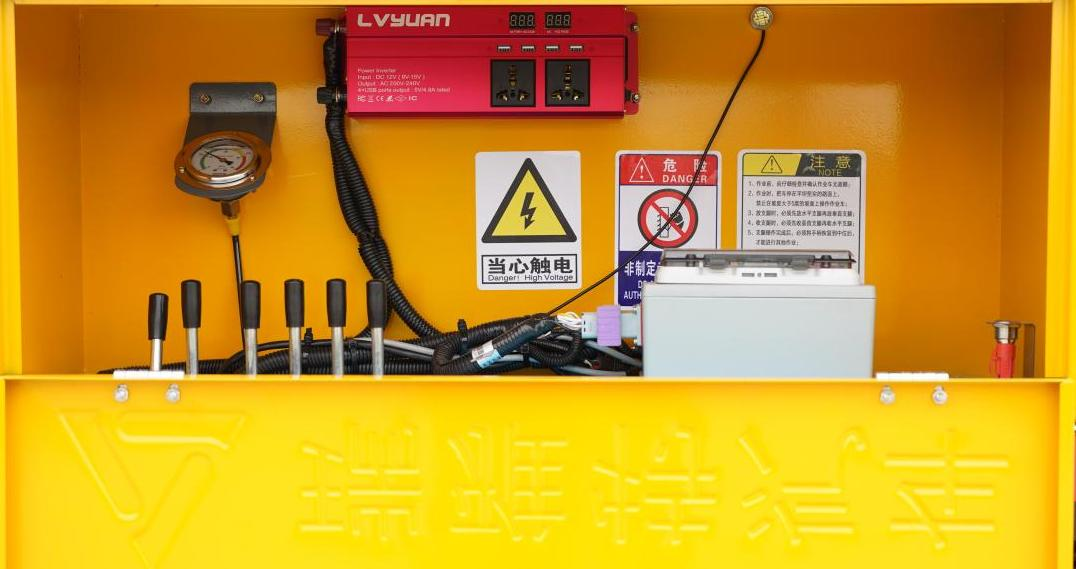

(3) The height of the car operation box is in line with the operator's operating height habit. The operation box is equipped with a level, and the operation mark is simple and clear.
(4) A large toolbox is equipped on the right side of the car body to facilitate customers to store tools with the car.
