ISUZU 23m Aerial Work Vehicle
Classification：
Keyword：
Overview Introduction
Tel：+86-123-4567-8998
Product Details Introduction
主要技术参数/Main technical parameters
|
类别 category |
项目 Item |
单位 unit |
数据 Data |
|
|
尺寸参数 size parameter |
总长/vehicle length |
mm |
6995 |
|
|
总宽/vehicle width |
mm |
2240 |
||
|
总高/vehicle height |
mm |
3490 |
||
|
质量参数 Quality parameters |
乘坐人数 (含驾驶员) Number of passengers allowed |
人 |
3 |
|
|
总质量/Total mass |
kg |
7300 |
||
|
主要 性能 参数 Main performance parameters |
工作平台额定载荷/working platform load rating |
kg |
600 |
|
|
最大作业高度/MAX. operating height |
m |
23 |
||
|
最大作业幅度/MAX. operating range |
m |
10 |
||
|
支腿跨距 outrigger span |
横向/ Transverse direction |
mm |
5600 |
|
|
纵向/Longitudinal direction |
mm |
5400 |
||
|
工作平台回转/work platform rotation |
。 |
360 |
||
|
臂架变幅时间/Arm amplitude change time |
s |
≥60 |
||
|
臂架回转速度/Arm rotation speed |
s/r |
60≤t≤120 |
||
|
支腿收放时间/Leg extension and retraction time |
s |
≤60 |
||
|
行驶参数
Driving parameters |
前悬/Front overhang |
mm |
1110 |
|
|
后悬/Rear overhang |
mm |
2525 |
||
|
前伸/protract |
mm |
/ |
||
|
后伸/Extension |
mm |
/ |
||
|
轴距/wheelbase |
mm |
3360 |
||
|
最高行驶速度/Max driving speed |
km/h |
100 |
||
|
最小离地间隙/Min ground clearance |
mm |
410 |
||
|
接近角/Approach angle |
。 |
/ |
||
|
离去角/Departure angle |
。 |
/ |
||
配置说明/CoNFlGURATloN DESCRlpTloN
|
部件名称 component Name |
简要说明 Brief description |
|
底盘/chassis |
五十铃(,SUZU) QL1073BUHAcY |
|
发动机/Engine |
4KB1-TcG60 2.499L 96KW 130PS |
|
驾驶室配置 cabin configuration |
前桥3.3吨, 后桥4.8吨, 变速箱5档, 驾驶室可翻转, 带中控锁, 遥控 钥匙, 电动车窗, 倒车雷达, 带空调。The front axle weighs 3.3 tons, and the rear axle weighs 4.8 tons. The gearbox has 5 gears. The cab can be tilted. ,t is equipped with a central control lock, a remote control key, power windows, a reversing radar, and an air conditioner. |
|
围栏及走台板 Fence and waIkway board |
不锈钢围栏, 铝合金防滑走台板 Stainless steel fence, aluminum alloy anti slip walkway board |
|
取力系统 power take-off system |
气动取力/Pneumatic power take-off |
|
工作平台 working pIatform |
4000× 1670× 1100mm (吊篮尺寸可按客户要求定制/The size of the hanging basket can be customized according to customer requirements) |
|
臂架形式 Arm form |
五节十八边形同步伸缩臂 Five section eighteen sided synchronous telescopic arm |
|
回转装置 Rotator |
360。连续回转/360。 continuous rotation |
|
支腿 outrigger |
前V后V型单节支腿 Front V-shaped and rear V-shaped single legged support |
|
操作 operate |
无线遥控盒操作, 下车液压手柄操作, 整车可实现全液压电动应急操 作。 wireless remote control box operation, hydraulic handle operation of the vehicle, the entire vehicle can achieve full hydraulic electric emergency operation. |
|
控制系统 controI system |
瑞雅特自研发高空车控制系统, 稳定性强/Ruiyate self-developed high-altitude vehicle control system with strong stability |
|
调平系统 IeveIing system |
组合式自动调平系统 (等容积油缸) combined Automatic Leveling System (Equal Volume cylinders) |
基本功能及安全配置lBasic functions and safety configuration
|
名称/Name |
简要说明/Brief |
|
支腿软腿检测 Leg soft leg detection |
实时检测支腿受力状态, 一旦检测到有支腿松动报警限动 Real-time detection of the leg force state, once the leg is detected loose alarm limit movement |
|
上下车自动互锁装置 upper and lower automatic vehicle interlock device |
自动实现上下车互锁, 防止上下车同时操作, 实现安全保护 Automatically interlocks the upper and lower controls to prevent simultaneous operation, ensuring safety protection for aerial work platforms. |
|
应急电动液压泵 Emergency electric-hydraulic pump |
当底盘发动机或液压主泵发生故障时, 将工作人员送回到地面 send the staff back to the ground when the chassis engine or hydraulic main pump fails. |
|
紧急停止装置 Emergency stop device |
用于紧急停止操作 For emergency stop operation |

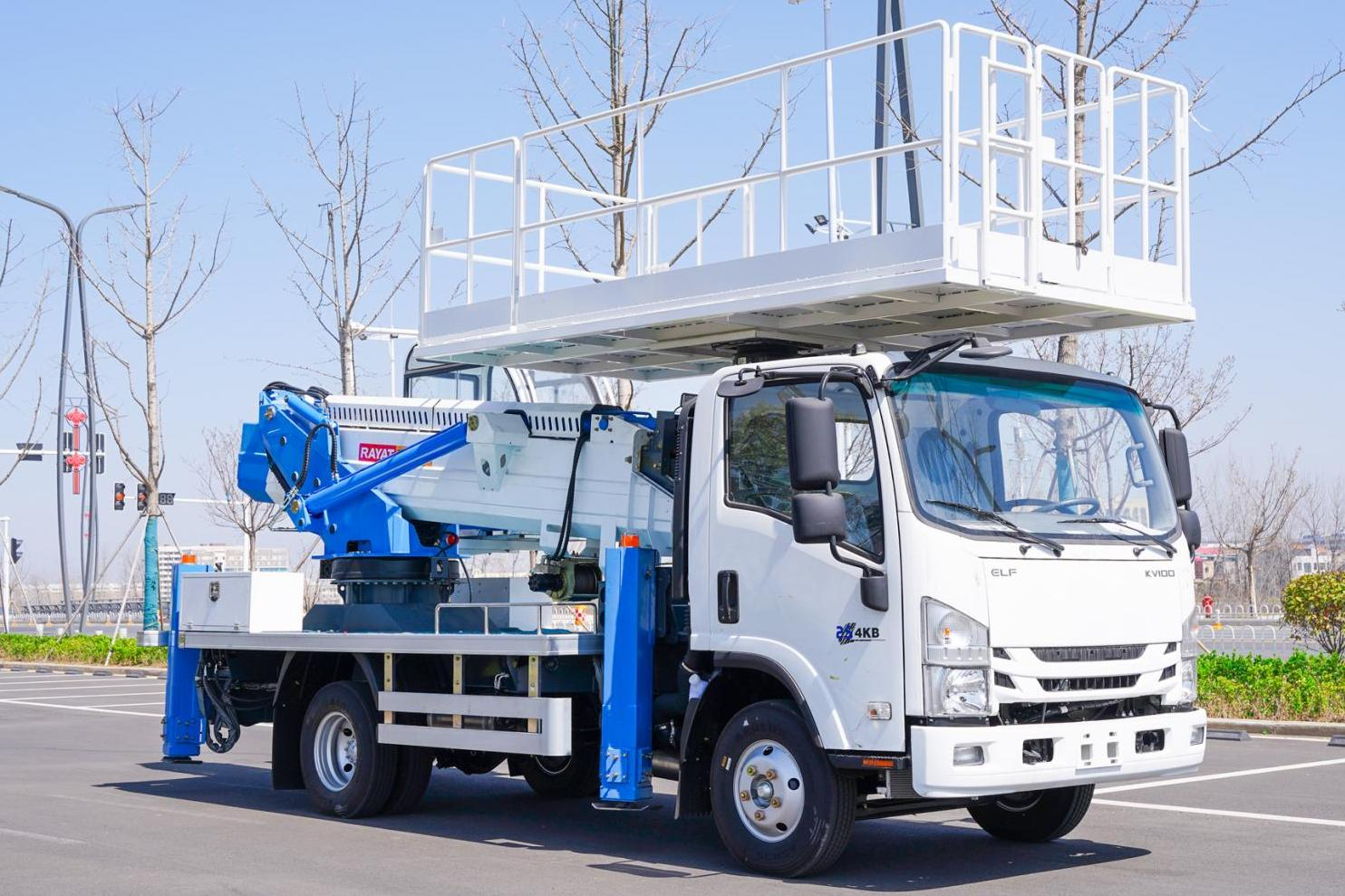

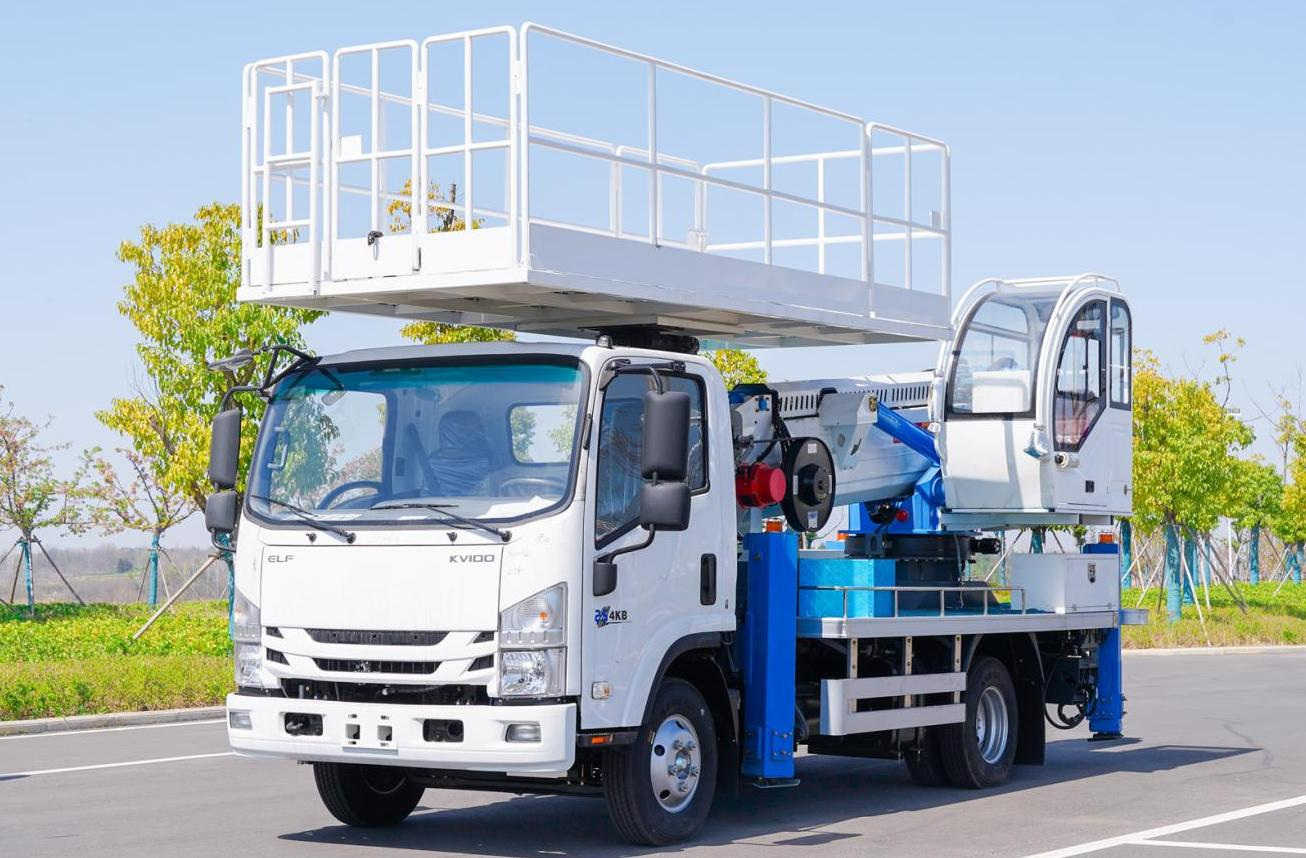

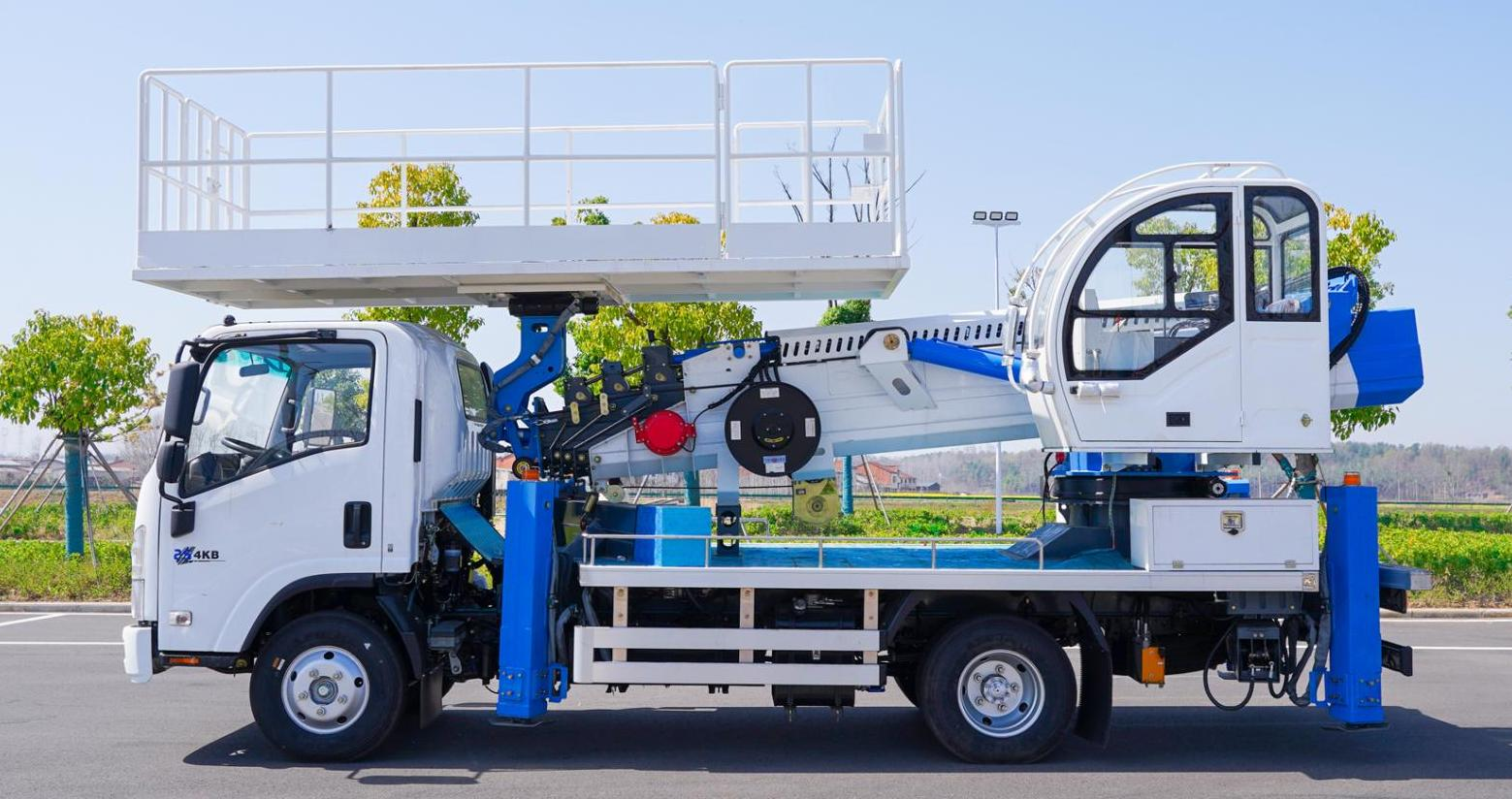

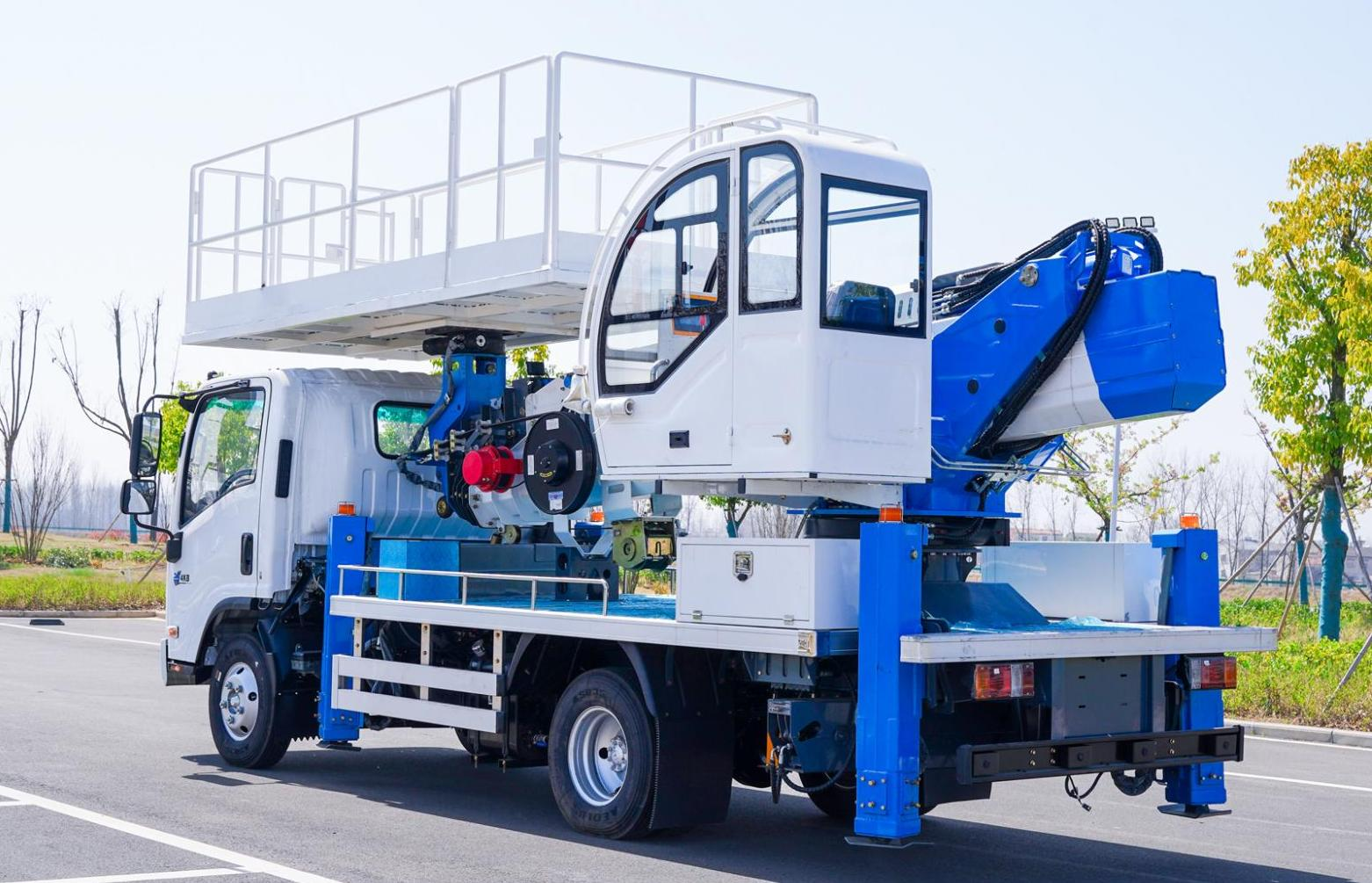

Product Details Display
OUR ADVANTAGES
Focusing on quality, win-win cooperation, providing professional car modification services for enterprises and individuals, precision production, and worry free after-sales service
Factory Show
● More than 70 professional workshops for 800 types of special purpose trucks ;
● More than 12,600 staffs including 800 D persons and 5000 technical workers ;
● Top 4 in Hubei Private Manufacturing Companies ;
● Top 500 of China private Companies ;
Production Process
● Truck Chassis ordering ;
● Superstructure frame welding and installation ;
● Main function equipment installation ;
● Testing before painting ;
● Customized logo design and painting ;
Our Advantage
● Long term cooperation with DONGFENG, SINOTRUK, FAW, FOTON, SHACMAN, JAC, ISUZU and so on ;
● Available for truck spare parts at factory price ;
● Available for overseas after-sale service ;
Complete After-Sale Service
● Pre-sales Service: Communicate with customers, analyze their needs ;
● Sales Service: Provide professional technical solutions, recommend the right models accordingly ;
Production Factory Display
Chengli Special Purpose Vehicle Company currently has over 3000 sets of specialized vehicle production equipment and over 600 sets of testing equipment; Each specialized vehicle category has strict assembly line production, forming a complete specialized vehicle production system; Some of the machining centers and production lines are at a leading level both domestically and internationally.
Qualification Certificate
Passed: ISO9001-2008 quality management, OHSAS18001 occupational health and safety management system certification, ISO 14001 environmental management, 3C mandatory certification, GJB9001B-2009 national military standard certification and confidentiality certification (national level three), automotive energy conservation and environmental protection certification, automotive exemption certification, American mechanical engineer ASME certification, EU agreement ADR certification.
OUR SERVICES
Dear customer,
Thanks for purchasing the product of ChengLi Special Automobile Co., Ltd!
We follow the quality policy as below: product leadership is our eternal target, customer satisfaction is our relentless pursuit, quality service is our best commitment, so we make our promises as follow:
1.Free maintenance and time
1)Tracking service time: lifelong
2)From the date of receiving, in normal use within 30000km or within one year, we will repair for free, but easy wear parts and electrical parts are not included. After one year, we only charge the maintenance cost.
2. After warranty time
1)Method: according to customer's requirement, the parts will send by our after sale department or send directly by local chassis service station
2) Parts only charge cost, no other charges
3. Chassis problem, please find the nearest chassis service station for repair, the detailed address please find the maintenance manual book or call our company after sale service number.
ChengLi Automobile Co., Ltd tries our best to service you.
FAQ
What Is The Package?
We offer wooden case, steel frame packaging, or according to customer's demand.
Can I Visit Your Company?
Welcome, look forward to your arrival and we will pick up you from the airport and lead you to visit our factory .
Are You Trading Company Or Manufacturing Factory?
We are both trading company and manufacturer. We have our own factory for more than ten years, and we established a new trading company for better service of overseas customers. Welcome to send your inquiry!
How About The Delivery Time?
Generally, it will take 40 to 60 days after receiving your advanced payment. The specific delivery time depends on the items and the quantity of your order.
How Can You Guarantee The Product Quality?
We have the quality control system ISO9001:2008, and it's been followed strictly. We also have the professional QC team to guarantee the quality.
I'D Like To Know Your Payment Terms.
T/T 40% as deposit, and 60% before delivery. We'll show you the photos of the products and packages before you pay the balance.
How About Shipping?
Big size trucks always shipping by RORO or Bulk ship, small type can shipping by container. Please contact us to get a shipping quotation.
Could Your Company Provide Customized Products?
Of course, we can provide the customized-designing product meeting with your demand.
Do You Have Any One In Stock?
In general, we don't have stock. Our products are all manufactured according to customers' requirements. So our products are all different and special.
Can You Give Us The Technical Drawing And Data?
Our products are all custom made. Usually you need to provide us with the drawings. And if you do not have it, some important data is also necessary. We can help you design it after we signed the contract and confidentiality agreement.
Do You Provide After-Sales Service?
Yes, we do. This product is guaranteed up to one year from purchase unless man-made damage. If there is anything wrong with product itself quality problem, we will change or repair it at our charge. If not, we will provide after-sales service at your charge.
