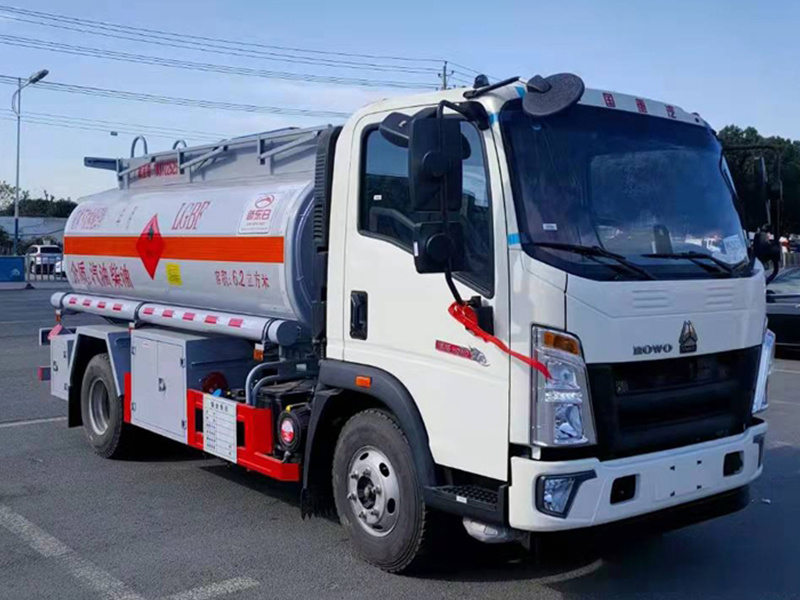

Sinotruk Howo Light Truck 5-ton Fuel Tanker (China VI Emission Standard)
Classification：
Keyword：
Overview Introduction
ZZ1097H3815F191Z The model with a wheelbase of 3300mm has a total mass of 9.1 tons, with a tank volume of 6.2 cubic meters, capable of carrying 5 tons of fuel without exceeding the limit; Equipped with a Weichai four-valve 130 horsepower engine for strong power; Wanliyang 6-speed transmission, 7.50R16 steel wire tires, air conditioning, electric windows + remote control, front disc brakes, front-mounted exhaust pipe, speed limiter, Lane Departure Warning System (LDWS) + Forward Collision Warning System (FCWS). All announcements, fuel, and environmental protection are in place.
Tel：+86-123-4567-8998
Product Details Introduction
China VI Howo Light Truck 5-Ton Fuel Truck Chassis Model:
ZZ1097H3815F191Z The model with a wheelbase of 3300mm has a total mass of 9.1 tons, with a tank volume of 6.2 cubic meters, capable of carrying 5 tons of fuel without exceeding the limit; Equipped with a Weichai four-valve 130 horsepower engine for strong power; Wanliyang 6-speed transmission, 7.50R16 steel wire tires, air conditioning, electric windows + remote control, front disc brakes, front-mounted exhaust pipe, speed limiter, Lane Departure Warning System (LDWS) + Forward Collision Warning System (FCWS). All announcements, fuel, and environmental protection are in place.
Vehicle Introduction and Specific Parameters：
| Chassis Model Number | ZZ1127H4515F1 | Chassis Name | Cargo Truck Chassis (Category II) |
| Trademark Name | Howo Brand | Manufacturer | China National Heavy Duty Truck Group Jinan Commercial Vehicle Co., Ltd. |
| Dimensions (mm) | 6900,7415,7905×2330,2370×2450,2500,2550,2600,2750,2800 | Number of Wheels | 6 |
| Approach/Departure Angle (°) | 18/26 | Tire Specifications | 245/70R19.5 16PR, 8.25R20 16PR |
| Number of Leaf Springs | 3/3+2,2/2+1,2/2+2,3/4+3,2/3+2,1/1+1,11/9+7,11/11+7,9/12+9,3/5+3,8/9+6 | Front Wheelbase (mm) | 1776,1800,1820 |
| Fuel Type | Diesel | Rear Wheelbase (mm) | 1555,1595,1695,1795 |
| Emission Standard | GB17691-2018 China VI | ||
| Engine Model Number | Engine Manufacturer | Displacement (ml) | Power (Kw) |
| WP3NQ160E61 | Weichai Power Co., Ltd. | 2970 | 118 |
| WP4.1NQ190E61 | Weichai Power Co., Ltd. | 4088 | 140 |
| WP4.6NQ220E61 | Weichai Power Co., Ltd. | 4580 | 162 |
Chassis Technical Parameters：
| Product Trademark | Xindongri Brand | Announcement Batch | 350 |
| Product Name | YZR5097GJYZ6 Oil Refueling Truck | Product Number | AS2W470N02A |
| Total Mass (Kg) | 9100 | Tank Capacity (m³) | 6.2 |
| Rated Load Mass (Kg) | 4970,4905 | Dimensions (mm) | 5960×2100×2650 |
| Curb Weight (Kg) | 4000 | Cargo Compartment Dimensions (mm) | ×× |
| Rated Passengers (Persons) | Total Mass of Towed Vehicle (Kg) | ||
| Number of Persons in Cab | 2,3 | Load Utilization Factor | |
| Approach/Departure Angle (°) | 18/18 | Front/Rear Overhang (mm) | 1160/1520 |
| Number of Axles | 2 | Wheelbase (mm) | 3280,3360,3600,3800 |
| Axle Load (Kg) | 3300/5800 | Maximum Speed (Km/h) | 80 |
Product Details Display
OUR ADVANTAGES
Focusing on quality, win-win cooperation, providing professional car modification services for enterprises and individuals, precision production, and worry free after-sales service
Factory Show
● More than 70 professional workshops for 800 types of special purpose trucks ;
● More than 12,600 staffs including 800 D persons and 5000 technical workers ;
● Top 4 in Hubei Private Manufacturing Companies ;
● Top 500 of China private Companies ;
Production Process
● Truck Chassis ordering ;
● Superstructure frame welding and installation ;
● Main function equipment installation ;
● Testing before painting ;
● Customized logo design and painting ;
Our Advantage
● Long term cooperation with DONGFENG, SINOTRUK, FAW, FOTON, SHACMAN, JAC, ISUZU and so on ;
● Available for truck spare parts at factory price ;
● Available for overseas after-sale service ;
Complete After-Sale Service
● Pre-sales Service: Communicate with customers, analyze their needs ;
● Sales Service: Provide professional technical solutions, recommend the right models accordingly ;
Production Factory Display
Chengli Special Purpose Vehicle Company currently has over 3000 sets of specialized vehicle production equipment and over 600 sets of testing equipment; Each specialized vehicle category has strict assembly line production, forming a complete specialized vehicle production system; Some of the machining centers and production lines are at a leading level both domestically and internationally.
Qualification Certificate
Passed: ISO9001-2008 quality management, OHSAS18001 occupational health and safety management system certification, ISO 14001 environmental management, 3C mandatory certification, GJB9001B-2009 national military standard certification and confidentiality certification (national level three), automotive energy conservation and environmental protection certification, automotive exemption certification, American mechanical engineer ASME certification, EU agreement ADR certification.
OUR SERVICES
Dear customer,
Thanks for purchasing the product of ChengLi Special Automobile Co., Ltd!
We follow the quality policy as below: product leadership is our eternal target, customer satisfaction is our relentless pursuit, quality service is our best commitment, so we make our promises as follow:
1.Free maintenance and time
1)Tracking service time: lifelong
2)From the date of receiving, in normal use within 30000km or within one year, we will repair for free, but easy wear parts and electrical parts are not included. After one year, we only charge the maintenance cost.
2. After warranty time
1)Method: according to customer's requirement, the parts will send by our after sale department or send directly by local chassis service station
2) Parts only charge cost, no other charges
3. Chassis problem, please find the nearest chassis service station for repair, the detailed address please find the maintenance manual book or call our company after sale service number.
ChengLi Automobile Co., Ltd tries our best to service you.
E-mail:clwspecauto@gmail.com
WhatsApp:13872880802
FAQ
What Is The Package?
We offer wooden case, steel frame packaging, or according to customer's demand.
Can I Visit Your Company?
Welcome, look forward to your arrival and we will pick up you from the airport and lead you to visit our factory .
Are You Trading Company Or Manufacturing Factory?
We are both trading company and manufacturer. We have our own factory for more than ten years, and we established a new trading company for better service of overseas customers. Welcome to send your inquiry!
How About The Delivery Time?
Generally, it will take 40 to 60 days after receiving your advanced payment. The specific delivery time depends on the items and the quantity of your order.
How Can You Guarantee The Product Quality?
We have the quality control system ISO9001:2008, and it's been followed strictly. We also have the professional QC team to guarantee the quality.
I'D Like To Know Your Payment Terms.
T/T 40% as deposit, and 60% before delivery. We'll show you the photos of the products and packages before you pay the balance.
How About Shipping?
Big size trucks always shipping by RORO or Bulk ship, small type can shipping by container. Please contact us to get a shipping quotation.
Could Your Company Provide Customized Products?
Of course, we can provide the customized-designing product meeting with your demand.
Do You Have Any One In Stock?
In general, we don't have stock. Our products are all manufactured according to customers' requirements. So our products are all different and special.
Can You Give Us The Technical Drawing And Data?
Our products are all custom made. Usually you need to provide us with the drawings. And if you do not have it, some important data is also necessary. We can help you design it after we signed the contract and confidentiality agreement.
Do You Provide After-Sales Service?
Yes, we do. This product is guaranteed up to one year from purchase unless man-made damage. If there is anything wrong with product itself quality problem, we will change or repair it at our charge. If not, we will provide after-sales service at your charge.
